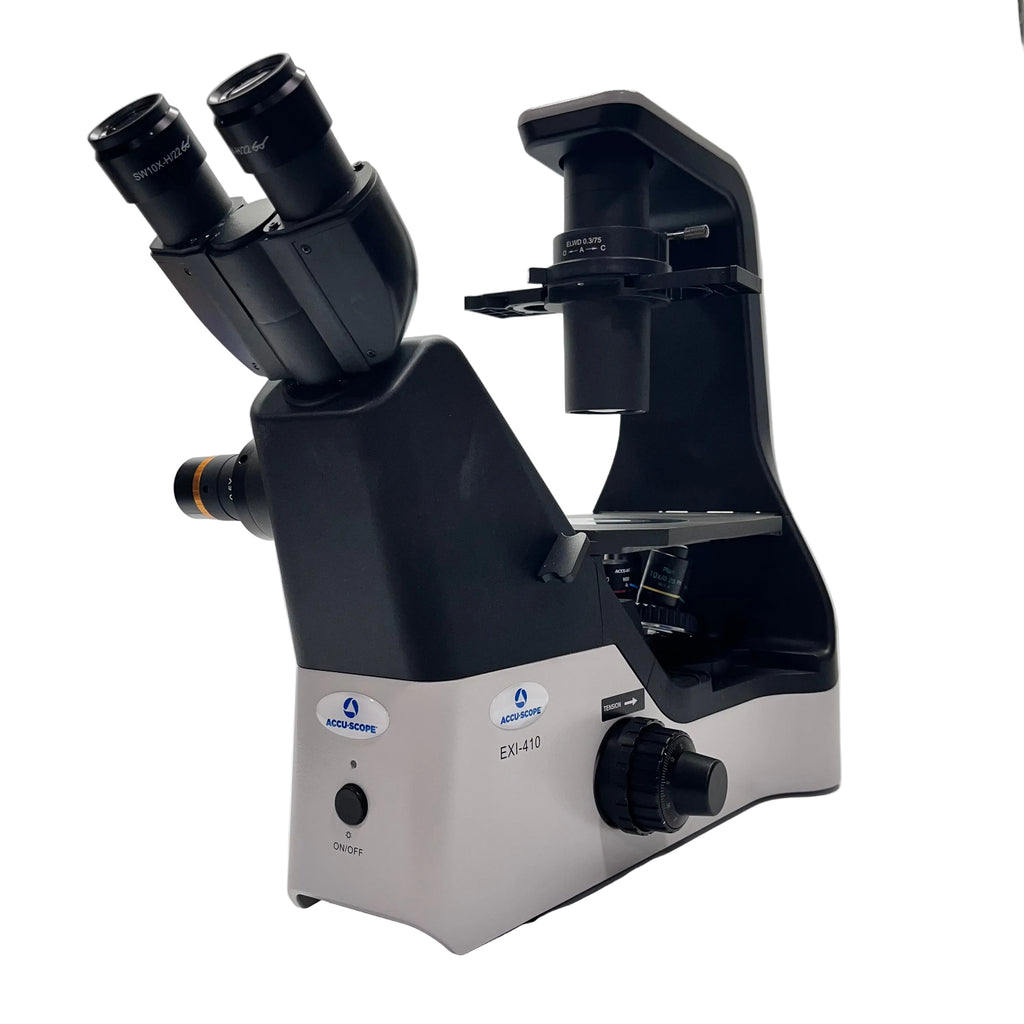

Demo Stock - Accu-Scope EXI-410 Inverted Phase Contrast Microscope
This Accu-Scope EXI-410 Inverted Phase Contrast Microscope is in like-new condition. It was used as demo stock and has been stored in the original packaging. Everything works as it should.
MANUFACTURER DESCRIPTION:
The Accu-Scope EXI-410 Inverted Phase contrast microscope has a lot to offer labs requiring a compact, versatile tissue culture microscope. This configuration includes wide FOV 22mm eyepieces allowing users to image a large portion of their samples. The NIS60 Infinity Plan 4x & Plan Phase 10x, 20x & 40x objectives provide ultra-clear, detailed images for brightfield and phase applications.

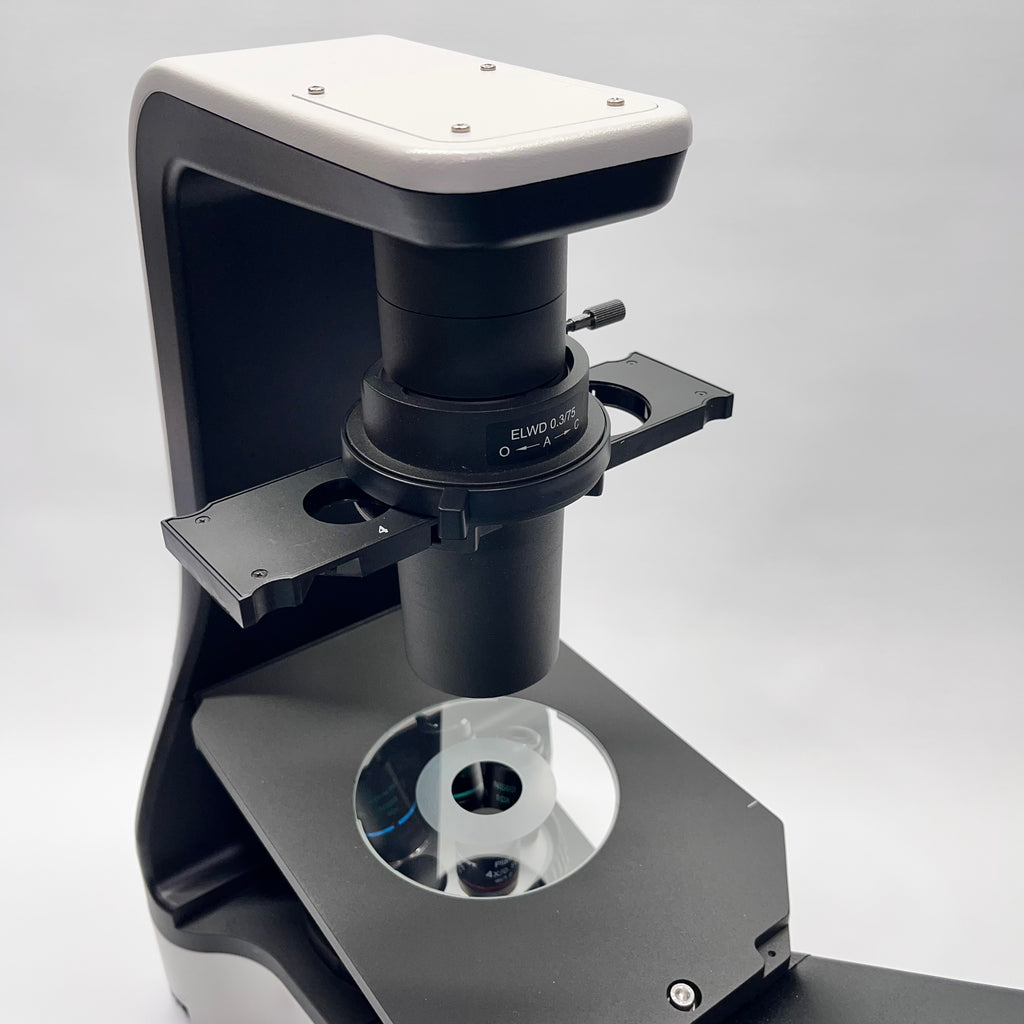

An easy-to-use phase contrast slider is located above the ELWD 0.3 N.A. condenser and provides positions for 4x/10x/20x/40x objectives. The standard flat-stage platform allows users to freely move a variety of samples around with ease. An optional mechanical stage is available with a variety of inserts to satisfy any sample.
The Accu-Scope EXI-410 is a great addition to any lab looking for a streamlined microscope for tissue culture and other clinical applications.
| DEMO STOCK ACCU-SCOPE EXI-410 INVERTED PHASE SPECIFICATIONS |
| Optical System: |
NIS60 Infinity Corrected Optical Path |
| Head: |

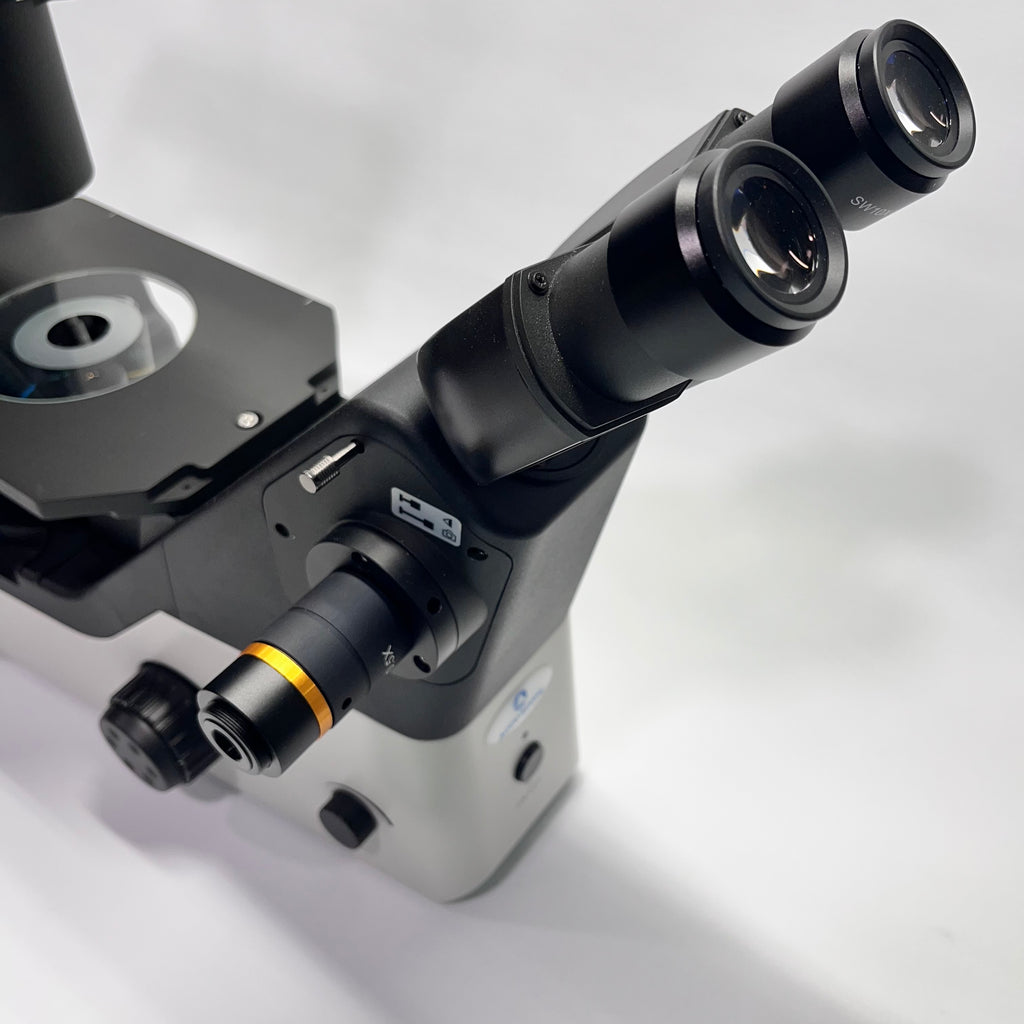

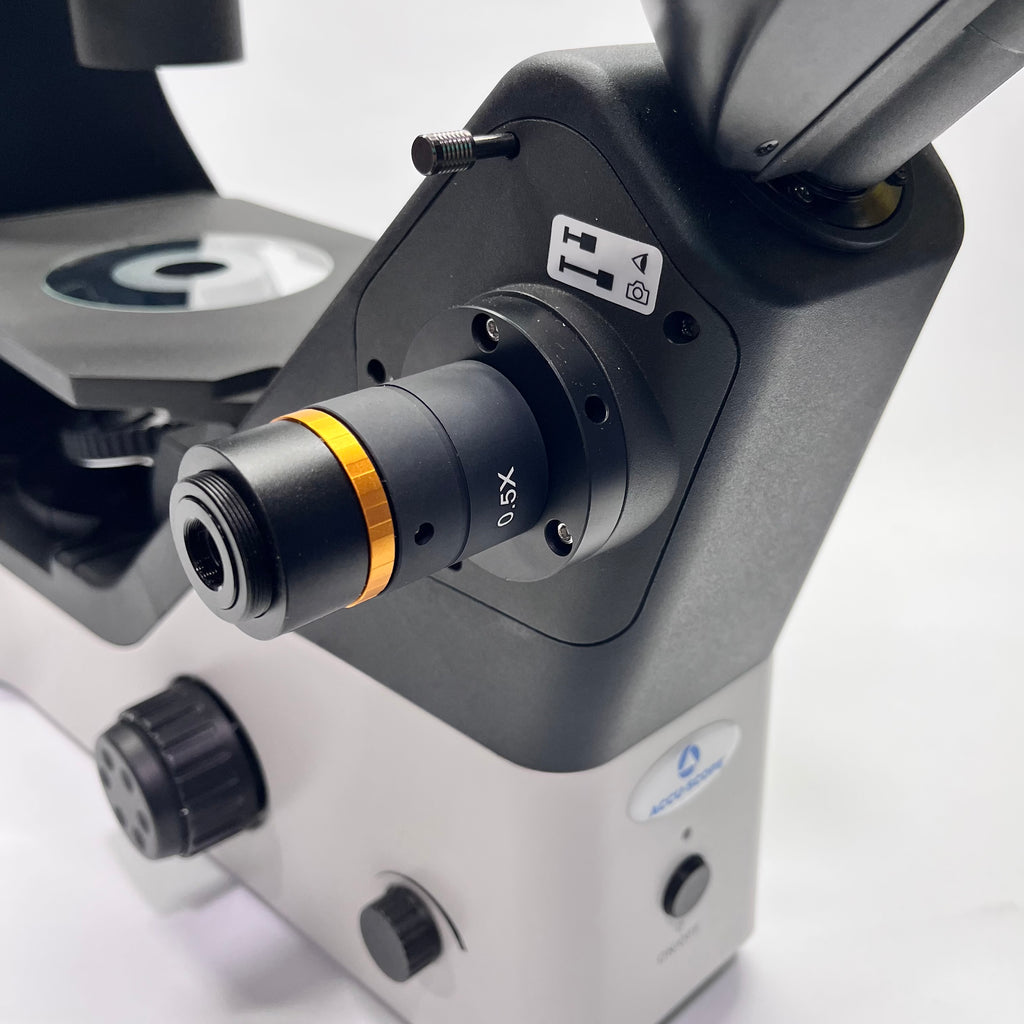

Binocular viewing head, inclined 45°, with attachable side mounted camera port
|
| Eyepieces: |
WF10x/22mm eyepieces with roll down eyeguards |
| Nosepiece: |
Side facing quintuple nosepiece |
| Objectives: |

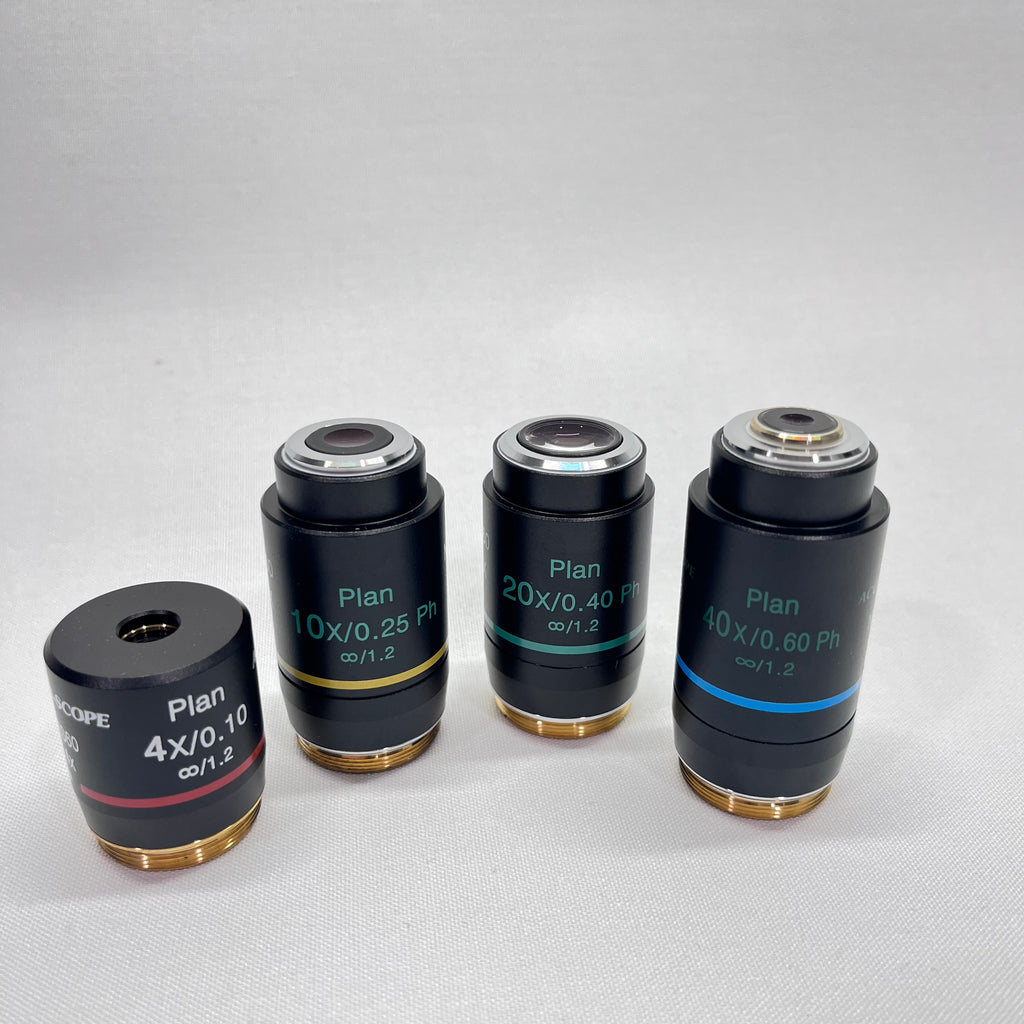

NIS60 Infinity Corrected Plan 4x, Plan Phase 10x, 20x & 40x objectives |
| Condenser: |
ELWD condenser, N.A. 0.3, Working Distance = 75mm. Phase Slider w/ Single 10x/20x/40x Phase Ring. |
| Stage: |
Fixed plain stage, 170 x 250mm with glass insert plates - Ø30mm |
| Illumination: |
3 watt S-LED transmitted illuminator |
| Focusing: |
Coaxial coarse and fine focus; fine-focus precision 0.002mm; focus range: 7mm up, 1.5mm down; total travel limit 18.5mm |
| Accessories: |
Dust cover, power cord, Universal power supply 100 - 240v |
| Warranty: |
1 Year Mechanical |
