Description
Zeiss Axio Vert.A1 Inverted Microscope w/ 8MP Camera - Phase & Fluorescence - Reconditioned
The ZEISS Axio Vert.A1 inverted biology microscope is your inverted microscope for advanced routine work. This inverted microscope is compact enough to sit beside your incubator and allows you to keep your cell culture in its own protected environment. This system has been set up for phase contrast and fluorescence microscopy, but the Axio Vert.A1 can offer additional techniques including brightfield, PlasDIC, and improved Hoffman Modulation Contrast (iHMC). Please contact us if you would like a customized quote.
| ZEISS AXIOVERT A1 FL SPECIFICATIONS | |
|---|---|
| Contrast Methods: | Brightfield, Phase Contrast, Fluorescence (B, G, R) |
| Head: | Binocular head inclined 45º , upright and unreversed image. Viewing height adjustable from 350-390mm. Includes left-side photo port with 100% beam splitter |
| Eyepieces: | Widefield 10x / 22 focusing eyepieces, accept 26mm diameter reticle. Interpupillary distance adjustable from 48-75mm. Includes eyecups |
| Objectives: |

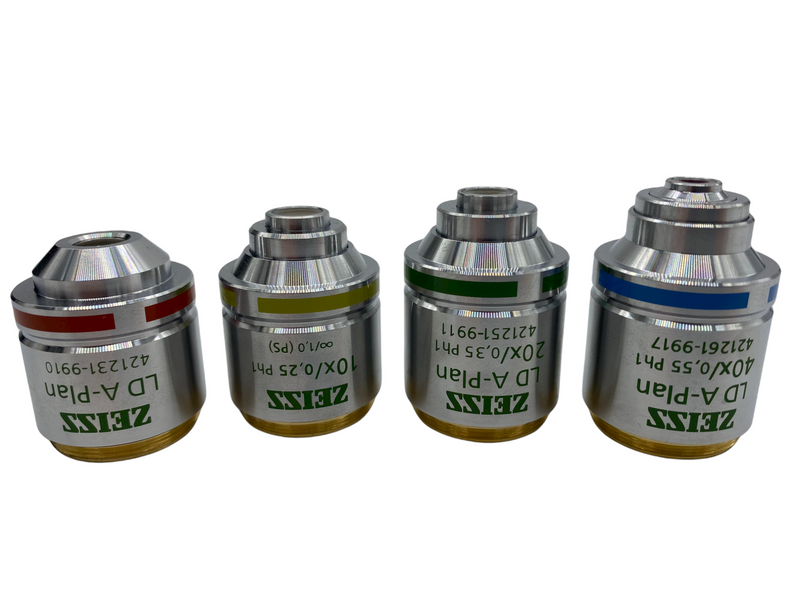

LD A Plan 5x/0.15, WD = 11.7mm, Ph1 LD A Plan 10x/0.25, WD = 8.5mm, Ph1 LD A Plan 20x/0.35, WD = 4.9mm, Ph1 LD A Plan 40x/0.55, WD = 2.3mm, Ph1 |
| Condenser: | LD Condenser NA0.4, WD = 72mm,rotatable with click stops at 0º, 90º, 180º, 270º, for objectives 2.5x - 40x. Condenser has aperture stop. Includes phase slider with fixed phase stop, Ph1/0.3, green filter and ND6 filter |
| Stage: | Plain Stage: Specimen stage 232mm x 230mm with hardcoat anodized surface |
| Illumination: |
TL: Halogen transmitted light with metal plate for shutter functionality to insert a 2-position filter slider (D = 32mm) RL: 89 North LM-75 Metal Halide Light source for Fluorescence illumination |
| Fluorescence: | GFP + Texas Red + DAPI = LED fluorescence module including filter cube with eGFP/FITC, mCherry/Texas Red, and UV / DAPI |
| Focusing: | Coarse and fine focusing with 13mm focus lift with adjustable focus stop |
| Stand Features: | Stand with 5-position nosepiece. Stand has 4-position reflector manual turret for P&C models. Integrated 12V DC 60W power unit, 100~240V |
| Warranty: | 1 Year |
| Camera: | New - Lumenera 8-8 - 8.0MP USB 3.0 Camera with Infinity Analyze Software |
