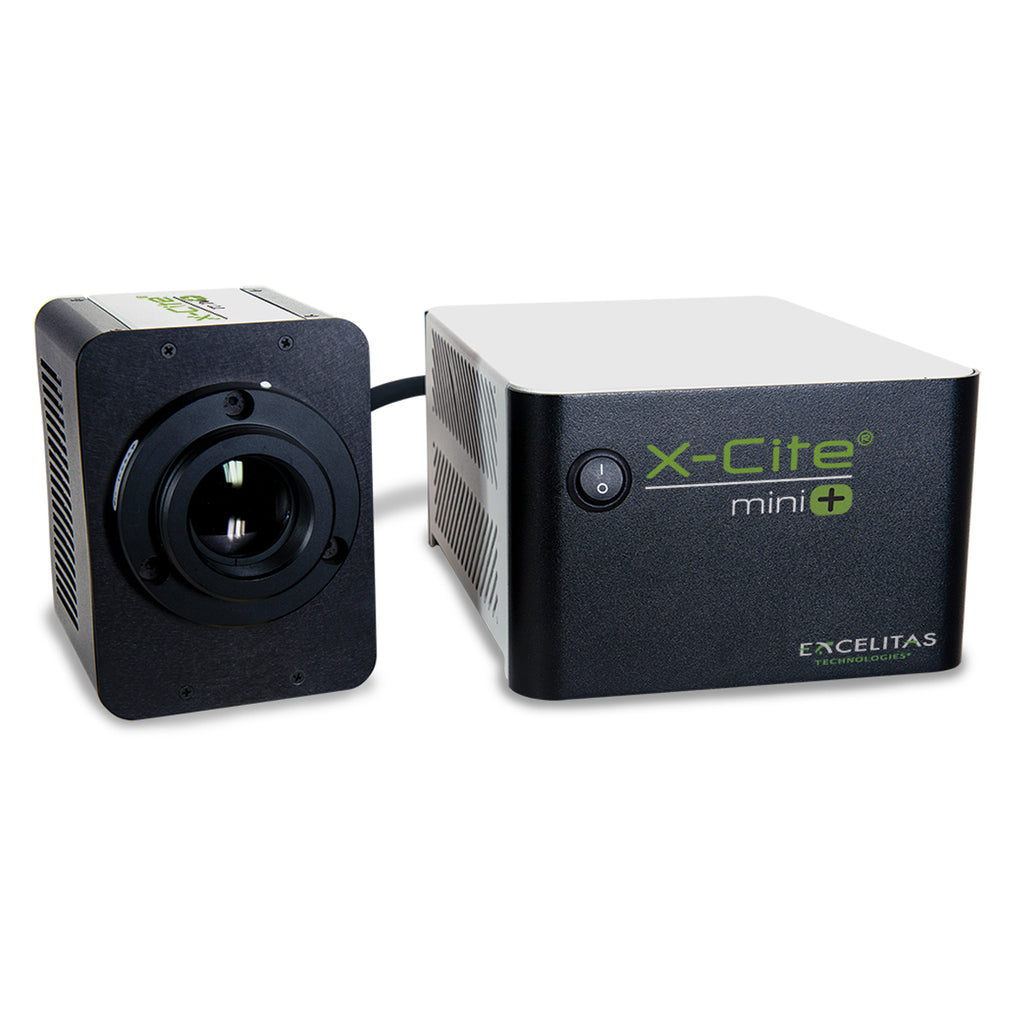

X-Cite Mini+ Compact LED Fluorescence Illuminator
The X-Cite Mini+ is a high-performance LED fluorescence microscope illuminator. The X-Cite Mini+ uses the latest LED technology to produce the best fluorescence images. Unlike Mercury lighting, LED fluorescence requires no warm-up, cool-down, or bulb adjustments. No mercury disposal fees or light guides to replace! Easily convert your existing Mercury fluorescence to LED fluorescence or use it with a new microscope.

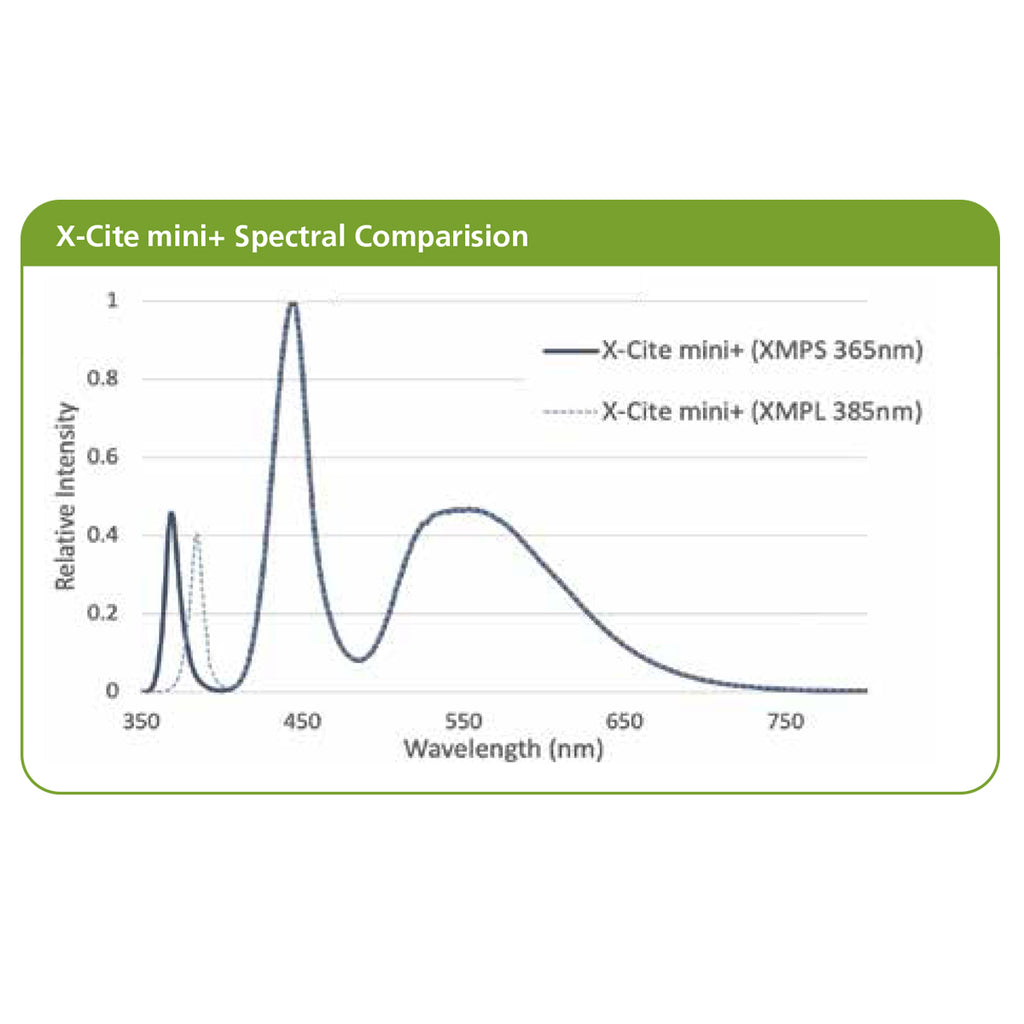

There are two UV wavelengths available, 365nm or 385nm, allowing you to match to your existing DAPI filters. All versions contain built-in controls with USB & TTL inputs for automation. An optional foot pedal is available for hands free control. The X-Cite Mini+ has a 20,000 hour warranty.
X-Cite Mini+ Characteristics:
- LED Technology: Efficiency, stability, instant ON/OFF, long lifetime, mercury-free
- White Light Excitation: Excitation of commonly used fluorophores such as DAPI, CFP, GFP/FITC, YFP, mCherry/Texas Red, and Cy5

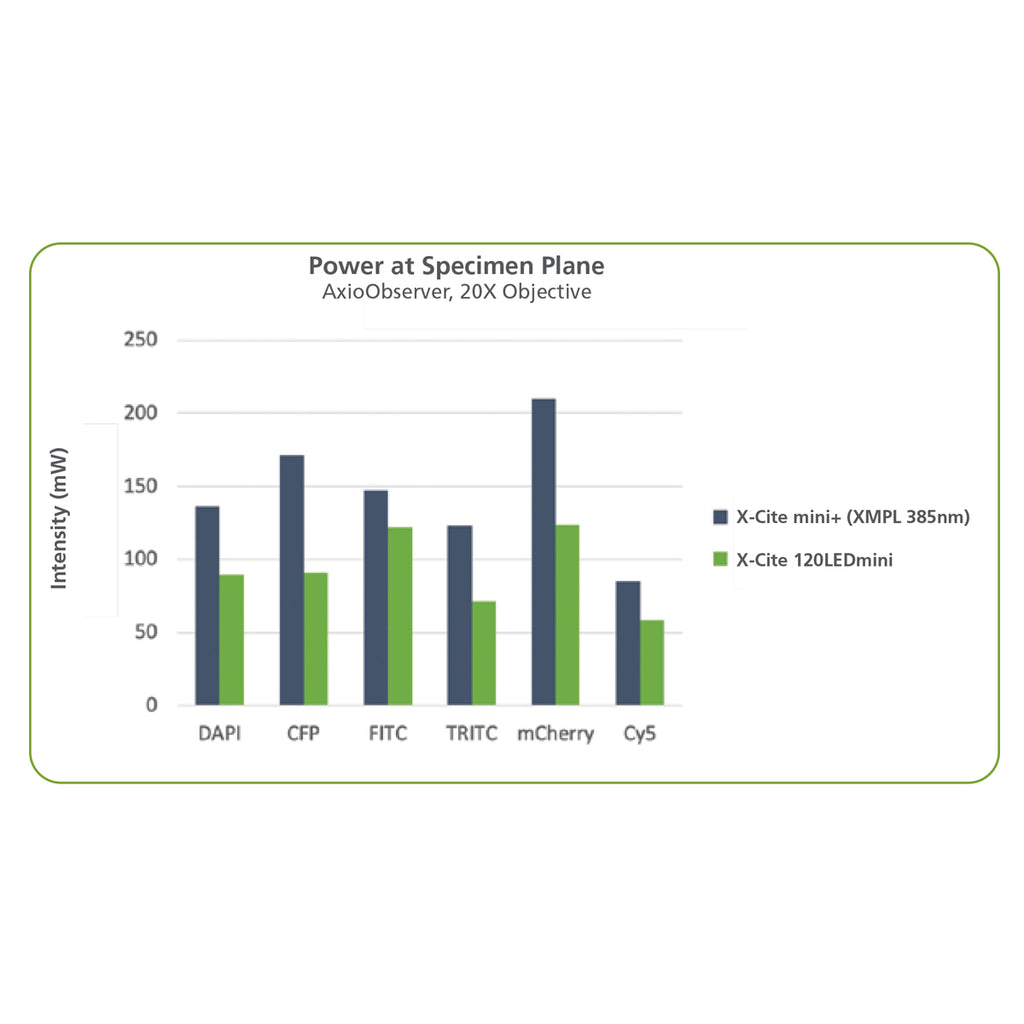

- Direct Coupled: High power excitation
- Multiple Control Options: Simple operation through USB, TTL or speedDIAL
- Small Footprint: Minimal space requirement; less bench-top real estate used
- Optimized Thermal Management: Maximum LED output, lifetime, stability and reliability
- X-Cite Coupling Optics: Efficient optical output and uniformity with highest performing coupling optics
| X-CITE MINI+ SPECIFICATIONS |
| Wavelength Range: |
Model XTMS: 360-700nm
Model XTML: 380-700nm |
| Power Supply: |
External, Universal Input 100-240 VAC, 50/60 Hz
|
| Current: |
2.4 - 1.2 A |
| Nosepiece: |
Revolving and reversed ball-bearing quadruple |
| LED On/Off: |
Response Time 100µs TTL / 1ms USB
|
| Control Options: |
On/Off - TTL compatible, speedDIAL, RS-232 commands, USB |
| I/O Connections: |
BNC input, USB B, 3.5mm stereo plug |
| Head Dimensions: |
100 mm x 135 mm x 110 mm (W x H x D) |
| Controller Dimensions: |
180 mm x 110 mm x 230 mm (W x H x D) |
| SpeedDIAL Dimensions: |
80 mm x 59 mm x 112 mm (W x H x D)
|
| Warranty: |
LED - 20,000 hours, All Other Parts 1 year - parts & labor |
