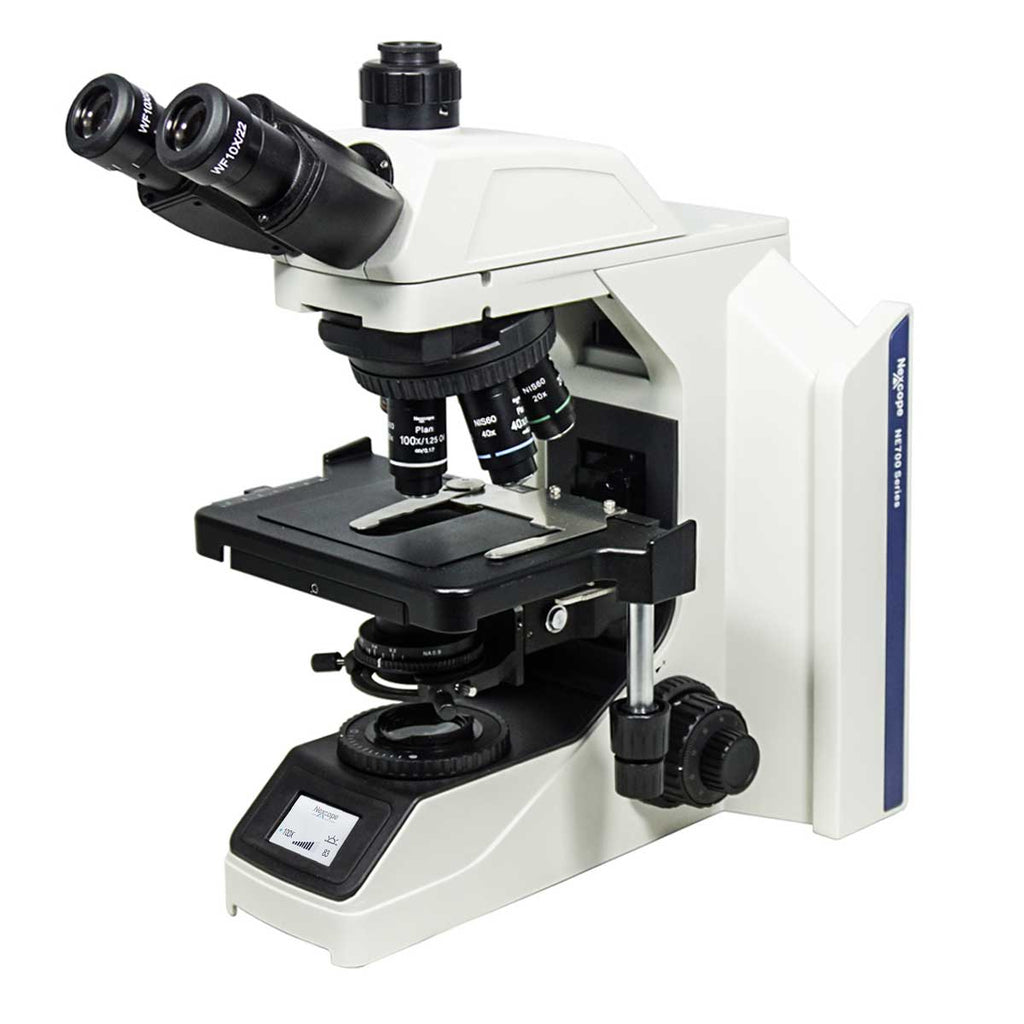

Nexcope NE-700 Upright Microscope
The Nexcope NE-700 sets a new high standard for low-cost, high-performance clinical quality microscopes. The NE-700 was designed to meet the stringent standards of clinicians and professionals. Crisp optics and smart light management make the NE-700 the perfect choice for veterinarians, pathologists and routine lab use.
The Nexcope NE-700 microscope comes with Infinity Plan Achromat 4x, 10x, 20x 40x & 100x (Oil) objectives. A trinocular viewing head is standard with an optional ergonomic tilting trinocular viewing head for improved comfort.
Wide FOV 22mm eyepieces provide large image fields to see more of your sample. The integrated smart display allows users to set light intensities for each objective as well as sleep/standby modes. A 3 watt LED provides more than enough light intensity throughout the magnification range and is rated for over 20,000 hours, meaning no bulb changes or alignment is necessary!
The Nexcope NE-700 is a research-grade, modular microscope at a price that any lab can afford!
***Please allow 4-6 weeks for delivery due to global supply & shipping disruptions***
| NEXCOPE NE-700 SPECIFICATIONS |
| Optical System: |
Infinity Optical System, f=200mm, Anti-Mold |
| Head: |
Trinocular (50:50 split), inclined 30°, rotatable 360°
-OR-
Ergonomic (tilting) binocular, 0°-35° adjustable inclination, rotatable 360°
|
| Eyepieces: |
WF 10x/22mm focusable eyepieces with diopter adjustment and eyeguards |
| Nosepiece: |
Reversed quintuple, encoded ball bearing nosepiece with positive click stops to ensure parcentration |
| Objectives: |
Infinity Plan Achromat 4x, 10x, 20, 40x and 100x oil* (*spring-loaded)
|
| Condenser: |
0.90 N.A. Abbe Condenser |
| Stage: |
78 x 54mm XY Travel mechanical Stage |
| Illumination: |
Smart 3-watt LED with variable intensity control and field iris diaphragm; LED bulb is rated for over 20,000 hours of continued use |
| Focusing: |
Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear |
| Accessories: |
Dust cover, immersion oil and instruction manual |
| Warranty: |
5 Year Mechanical & Electrical |
