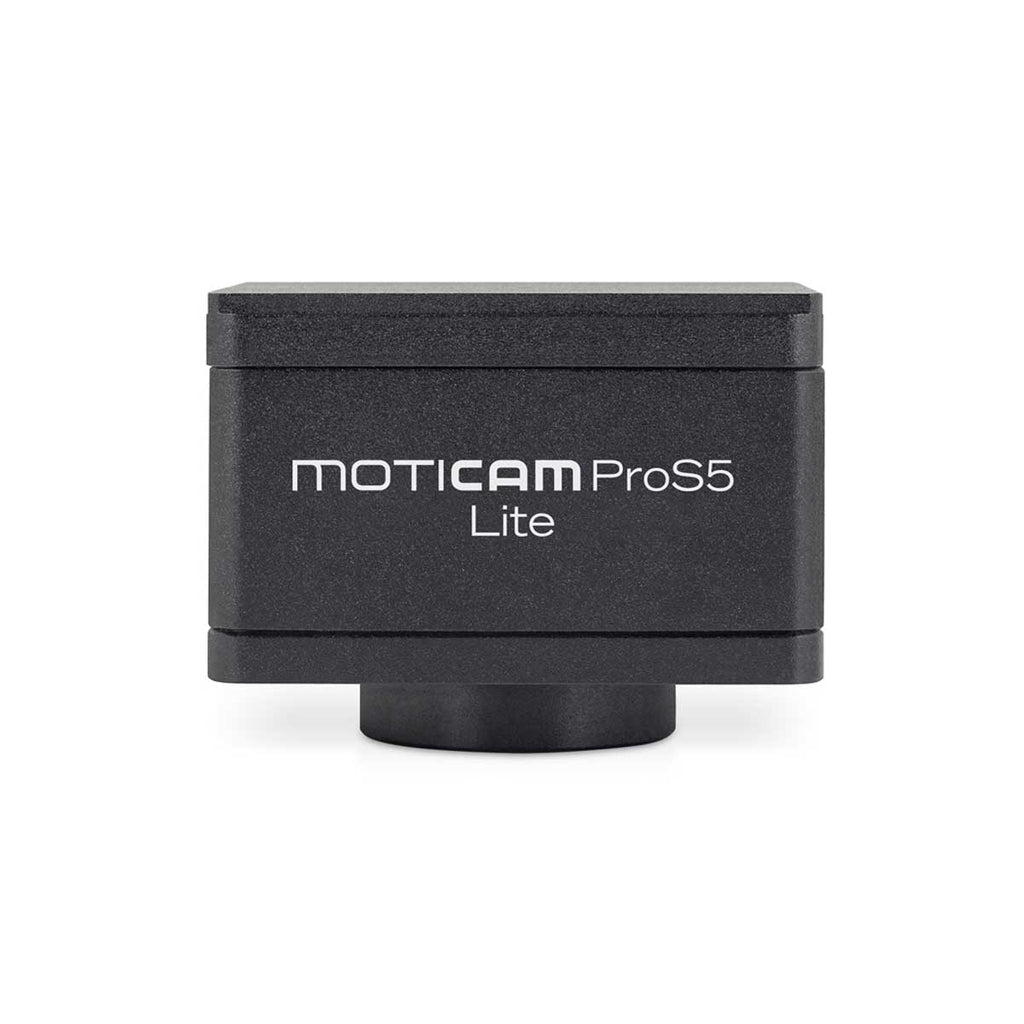

Moticam PRO S5 Lite - 5 Megapixel sCMOS Microscope Camera - USB 3.0
The Moticam PRO S5 Lite utilizes the latest in back-illuminated sensor technology to provide users with ultra-crisp images and excellent color reproduction. The USB 3.1 interface provides frame rates up to 40fps. The PRO S5 Lite has exceptional sensitivity for low-light level applications and a Global shutter for fast data transfer.
The included Motic Images Plus 3.0 software operates on Windows, OSX and Linux platforms and provides features such as Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system and more.
Attractively priced and still fully equipped with all necessary accessories, this sCMOS camera delivers the Moticam Ethos in an affordable package.
Moticam PRO S5 Lite Characteristics:
- Fast 40 FPS live images
- Motic Images Plus for full camera control, image / video capture and more
- Global Shutter
| MOTICAM PRO S5 Lite SPECIFICATIONS |
| SENSOR: |
2/3" sCMOS |
| IMAGING AREA: |
11.1mm (Diagonal)
|
| MAX FRAME RATE: |
2448 x 2048 @ 37.5fps
1224 x 1024 @ 88.4fps
|
| IMAGE CAPTURE: |
5 MP |
| SHUTTER: |
Global Shutter
|
| PIXEL SIZE: |
3.45 x 3.45μm
|
| WHITE BALANCE: |
Automatic or Manual |
| OTHER SETTINGS: |
Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system. |
| SOFTWARE: |
Motic Images Plus 3.0 (free download)
Standard Tools: Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
|
| SUPPORTED OS: |
Microsoft Windows 7/8/10, MAC OSX10.9, Linux or higher |
| SYSTEM REQUIREMENTS: |
2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB |
| LENS MOUNT: |
C-Mount |
| POWER SUPPLY: |
5V (USB supply) |
| PACKAGE INCLUDES: |
CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux |
