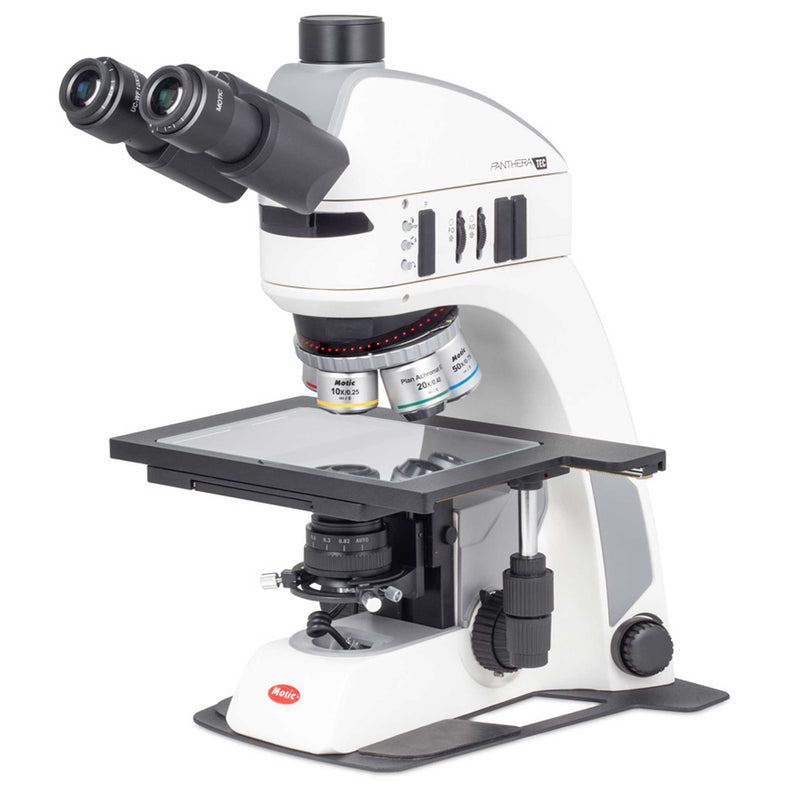

Motic Panthera TEC MAT Metallurgical Brightfield & Darkfield Microscope
The Motic Panthera TEC MAT brings a whole new level of optical clarity and versatility to the field of industrial inspection and quality control. The Panthera TEC MAT is the perfect choice for inspecting semiconductors, wafers, metallurgical samples and a variety of other materials. Brightfield, Darkfield, and Cross-Polarization contrast are paired with a new, proprietary to Motic segmental illumination to increase the model's functionality. This technique enables oblique incident lighting, which is ideal for detecting scratches or other defects on flat, reflective surfaces without requiring the sample to be moved. This BD version contains LD Plan BD objectives with exceptional imaging capability set on a five-fold nosepiece.
Each objective position's light intensity is automatically memorized and is replicated when the objective is rotated in again. A compact Epi illuminator incorporates a polarizer slot and a rotating analyzer, allowing for Polarization contrast and internal reflection reduction.
| MOTIC PANTHERA TEC MAT SPECIFICATIONS |
| Optical System: |
Colour Corrected Infinity Optical System (CCIS®) |
| Head: |
Trinocular head, Siedentopf type, 360° swiveling |
| Eyepieces: |
Widefield UC-WF10X/22mm with diopter adjustment |
| Nosepiece: |
Reversed quintuple with light tracer (coded) |
| Objectives: |
CCIS® BD Plan Achromatic 5x 10x, 20x & S-Apo 50x |
| Condenser: |
LED condenser (Transmitted version only) |
| Stage: |
Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate
3" x 2" -OR- 6" x 4"
|
| Incident Illumination: |
LED 3W with integrated field and aperture diaphragms |
| Transmitted Illumination: |
0.06Wx39 LEDs (Transmitted Versions Only) |
| Other features: |
USB 2.0 for external camera power |
| Focusing: |
Coaxial coarse and fine focusing system with tension adjustment. Fine focus precision of 2μm minimum. |
| Accessories: |
Dust cover, power cord, Allen key, immersion oil (5ml) |
| Warranty: |
5 Year Mechanical & Electrical |
