Motic Panthera E2 Cytology Microscope
The Motic Panthera E2 Cytology Microscope is the perfect choice for students and professionals alike. The Motic Panthera E2 Cytology microscope produces some of the best images we have seen from any microscope in this price range. This Panthera E2 Cytology configuration includes CCIS Plan Achromat UC (Ultra-Contrast) 4x, 10x and 40x objectives and is available with your choice of a binocular or trinocular viewing head.

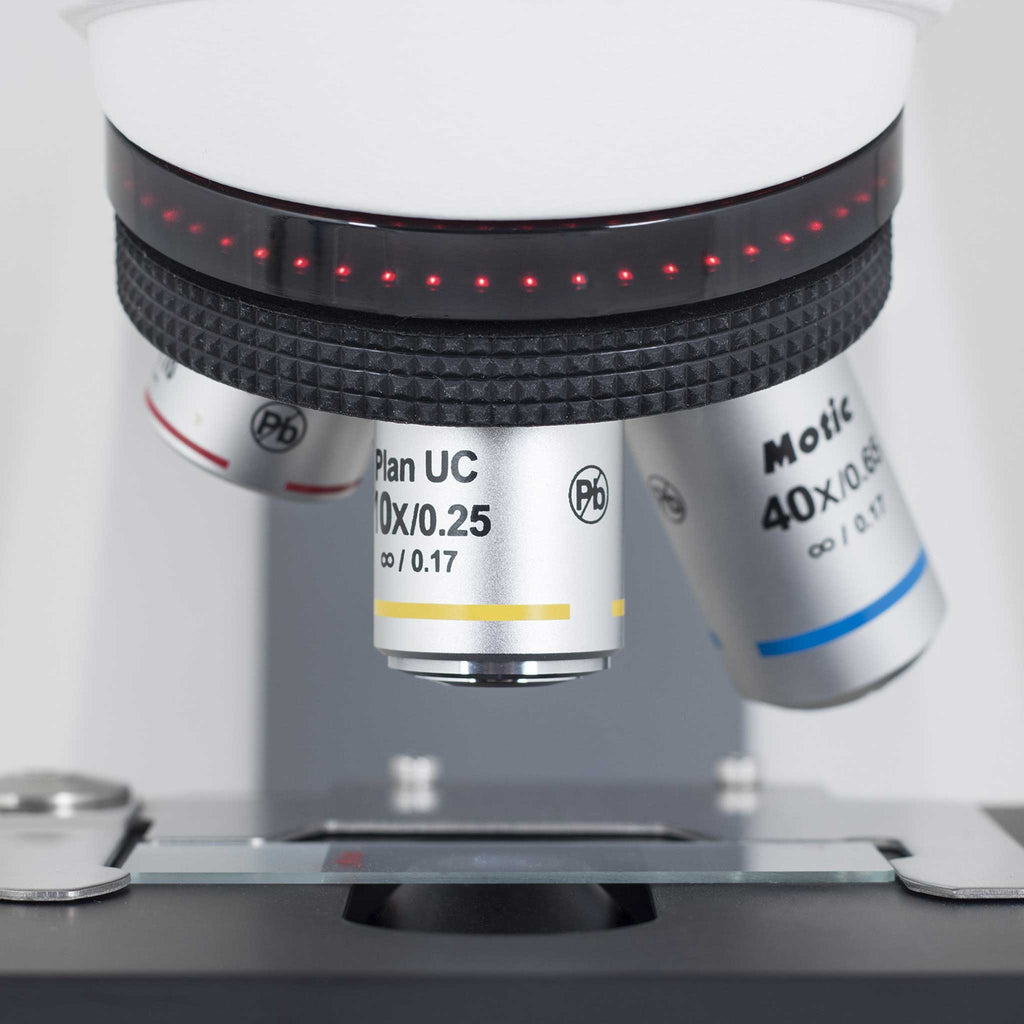

The Motic Panthera E2 stands out with it's light intensity indicator located on the nosepiece. This gives users a visual indication of the light intensity setting. CCIS Plan Achromat UC objectives come standard. Choose your Panthera E2 with or without a 100x oil objective.
|MOTIC PANTHERA E2 CYTOLOGY SPECIFICATIONS|
|Optical System:||Colour Corrected Infinity Optical System (CCIS®)|

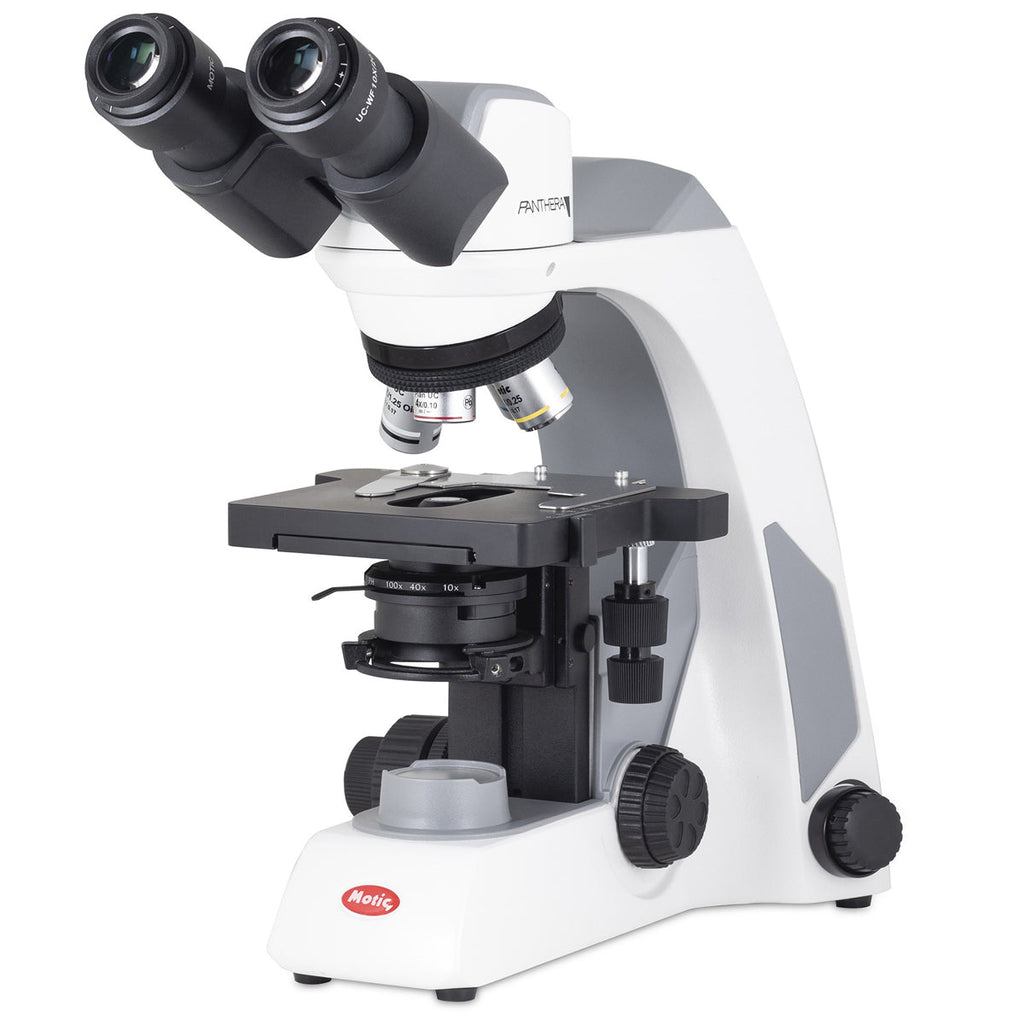

Binocular head, Siedentopf type, 360° swiveling

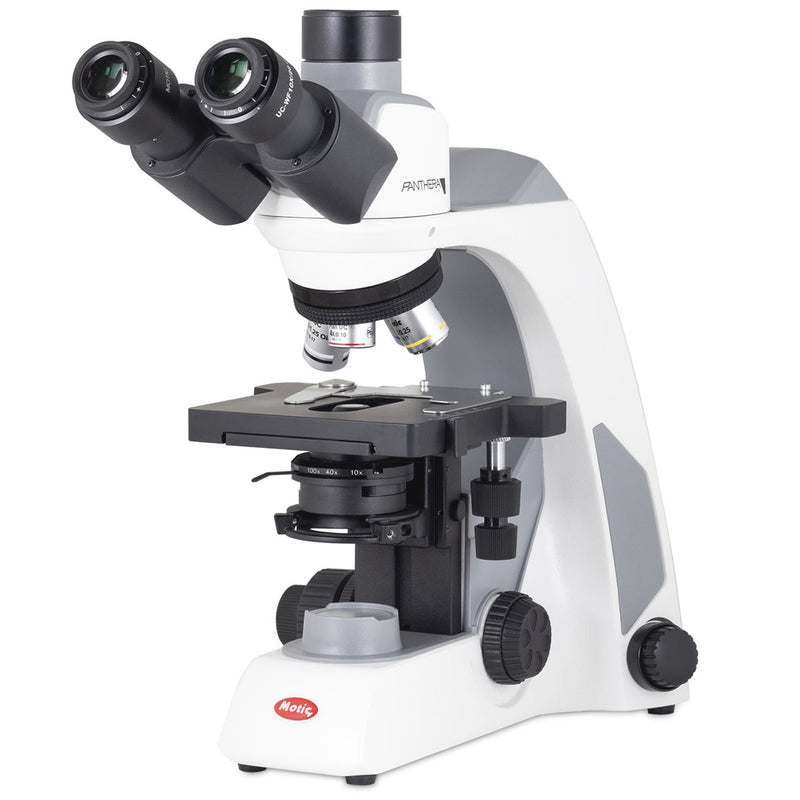

Trinocular head (50/50), Siedentopf type, 360° swiveling
|Eyepieces:||Widefield UC-WF10X/20mm, +/- 5 diopter on both eyepieces|

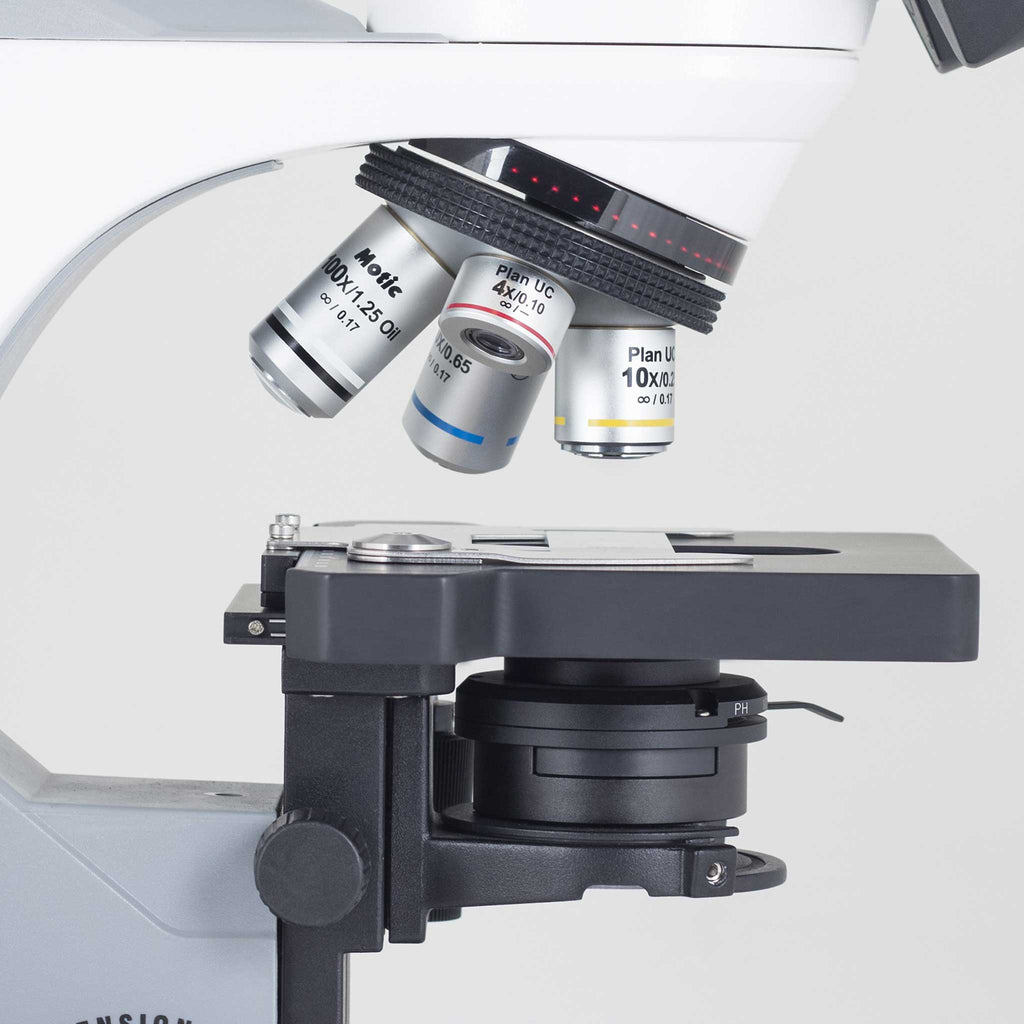

CCIS® UC Plan Achromatic 4x, 10x, 40x

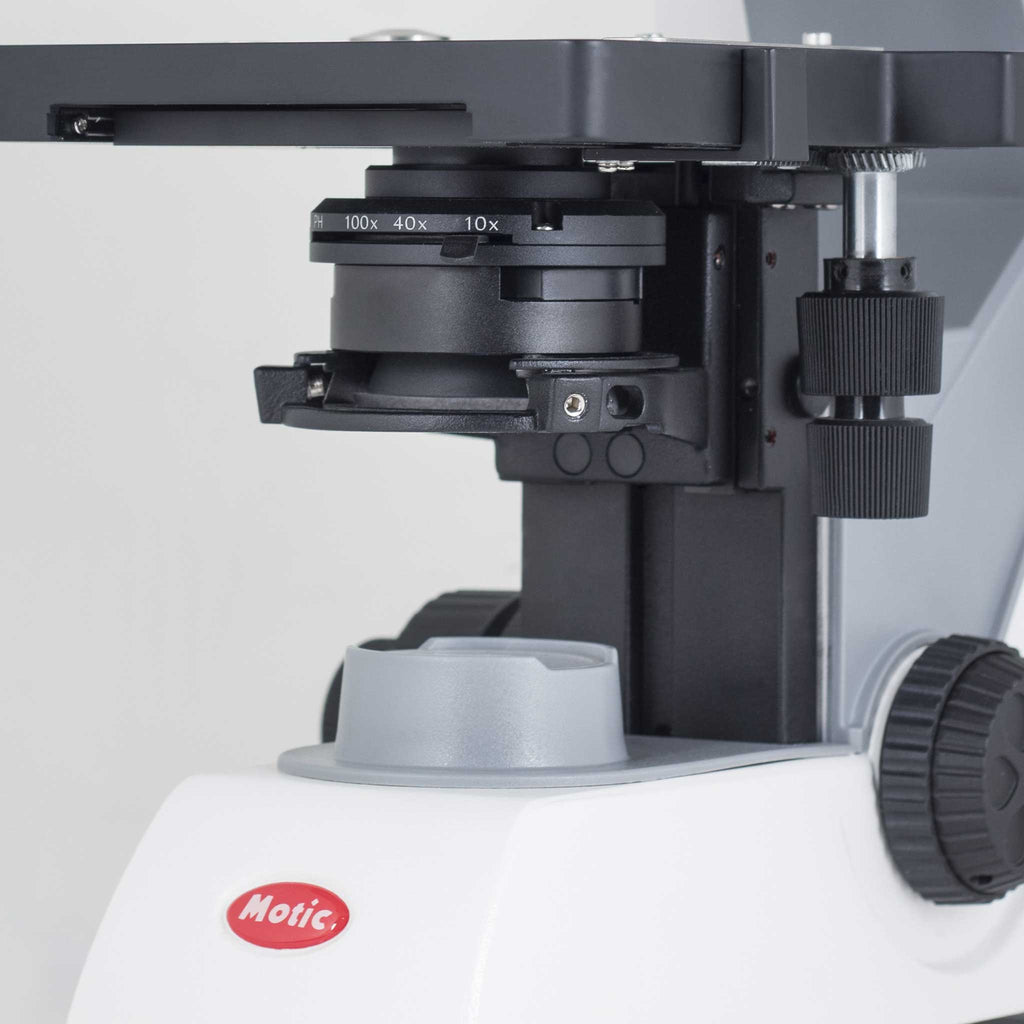

|Condenser:||Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders and iris diaphragm|
|Stage:||Mechanical stage with built-in low position rackless coaxial stage control and sample holder|
|Illumination:||Fixed Koehler LED 1W with intensity control|
|Focusing:||Coaxial coarse and fine focusing system with tension adjustment. Fine focus precision of 2μm minimum.|
|Accessories:||Dust cover, power cord, Allen key, immersion oil (5ml)|
|Warranty:||5 Year Mechanical & Electrical|
