Motic Panthera C2 Phase / Darkfield Trinocular Microscope
The Motic Panthera C2 Microscope is the perfect choice for higher education, life sciences and routine biological applications. This Panthera C2 configuration includes your choice of CCIS Plan UC 4X, 10X & Plan Phase 40X S or Plan UC 4X, 10X & Plan Phase 40X S, 100X S objectives and a Phase contrast 5 position (BF, DF, Ph1, Ph2, Ph3) Turret Condenser.
The Motic Panthera C2 stands out with it's light intensity indicator located on the nosepiece. This gives users a visual indication of the light intensity setting.
| MOTIC PANTHERA C2 PHASE / DARKFIELD SPECIFICATIONS |
| Optical System: |
Colour Corrected Infinity Optical System (CCIS®) |
| Head: |
Trinocular head (50/50), Siedentopf type, 360° swiveling
|
| Eyepieces: |
UC Widefield high eyepoint eyepiece UC-WF10X/22mm
|
| Nosepiece: |
Reversed coded quintuple nosepiece with light tracer (intelli Light Management)
|
| Objectives: |

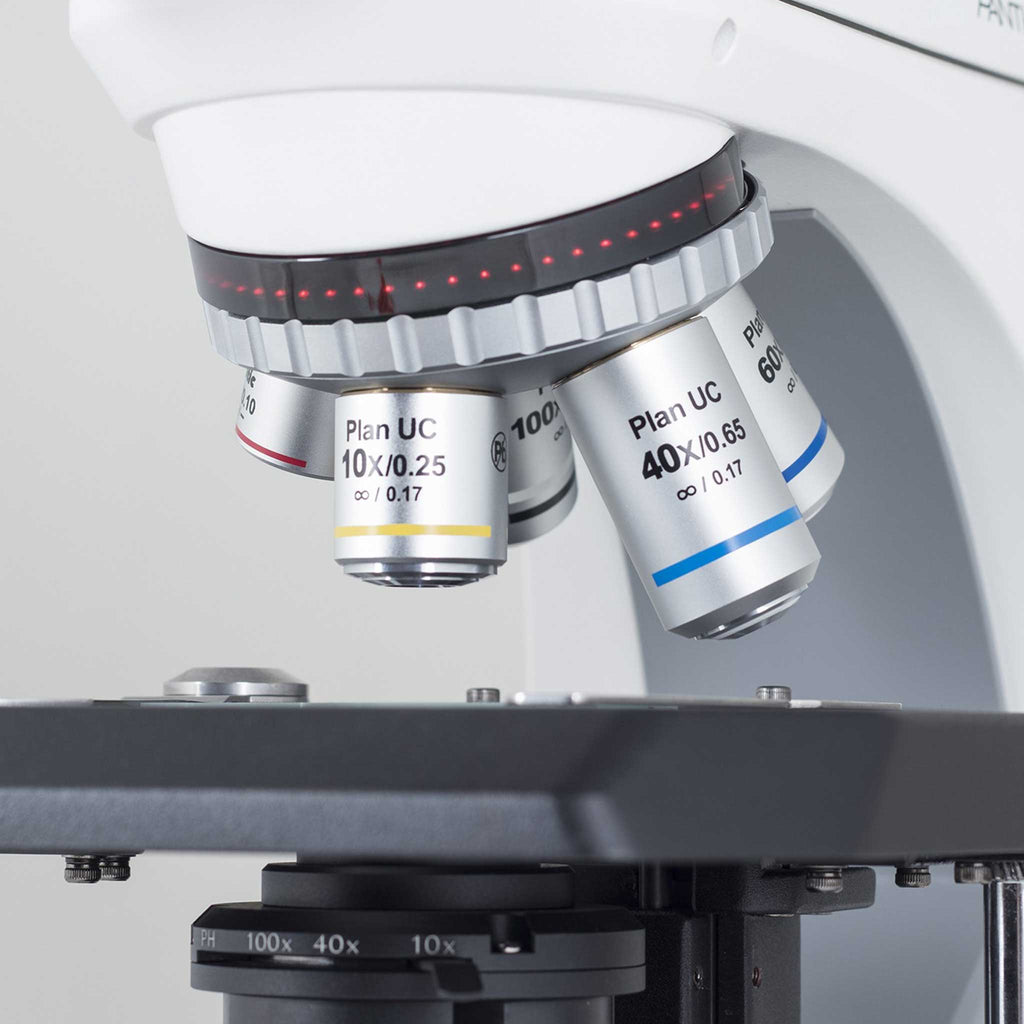

CCIS® Plan UC 4x, 10x - Plan Phase 40xS
-OR-
CCIS® Plan UC 4x, 10x - Plan Phase 40xS, 100xS Oil
|
| Condenser: |
Phase contrast 5 position (BF, DF, Ph1, Ph2, Ph3) Turret Condenser
|
| Stage: |
Mechanical stage with built-in low position rackless coaxial stage control and double-slide holder |
| Illumination: |
Koehler illumination with 3W LED and halogen 6V/30W interchangeable with intensity control
|
| Focusing: |
Coaxial coarse and fine focusing system with tension adjustment. Fine focus precision of 2μm minimum. |
| Accessories: |
Power cord, blue filter, immersion oil (5ml), allen hexagonal key, vinyl dust cover, HAL and LED module, Instruction manual, Phase centering telescope
|
| Warranty: |
5 Year Mechanical & Electrical |
