Motic Panthera C2 Phase / Darkfield / POL Trinocular Microscope
The Motic Panthera C2 Microscope is the perfect choice for higher education, life sciences and routine biological applications. This Panthera C2 configuration includes CCIS Plan UC 4X & Plan Phase 10X, 20X, 40X S objectives and a Phase contrast 5 position (BF, DF, Ph1, Ph2, Ph3) Turret Condenser. a 100x (Oil) Plan Phase objective is optional. A simple Polarizer & Analyzer are also included.
The Motic Panthera C2 stands out with it's light intensity indicator located on the nosepiece. This gives users a visual indication of the light intensity setting.
| MOTIC PANTHERA C2 PHASE / DARKFIELD / POL SPECIFICATIONS |
| Optical System: |
Colour Corrected Infinity Optical System (CCIS®) |
| Head: |
Trinocular head (50/50), Siedentopf type, 360° swiveling
|
| Eyepieces: |

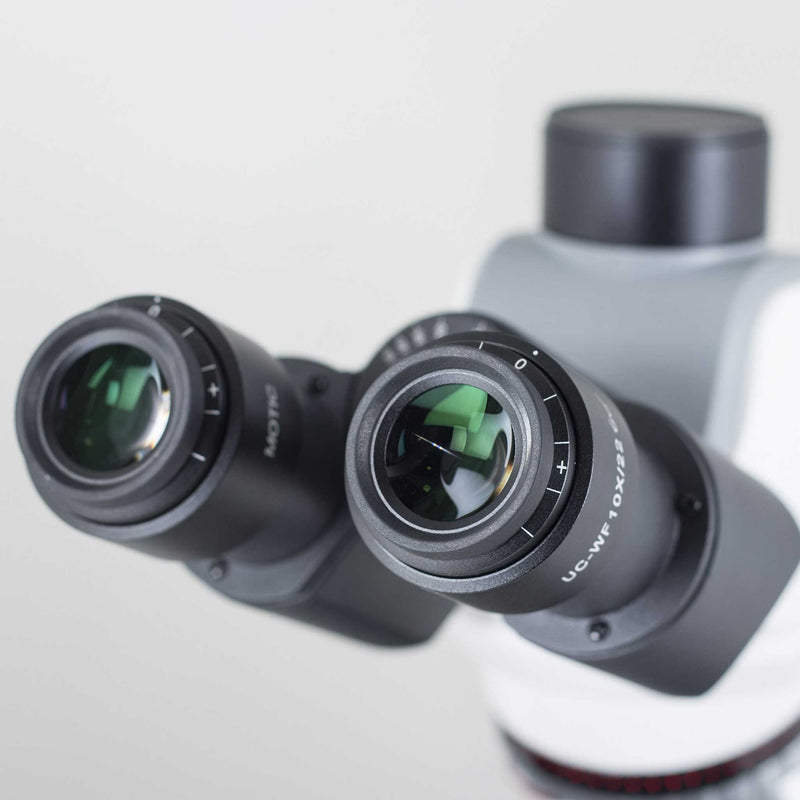

UC Widefield high eyepoint eyepiece UC-WF10X/22mm
|
| Nosepiece: |
Reversed coded quintuple nosepiece with light tracer (intelli Light Management)
|
| Objectives: |

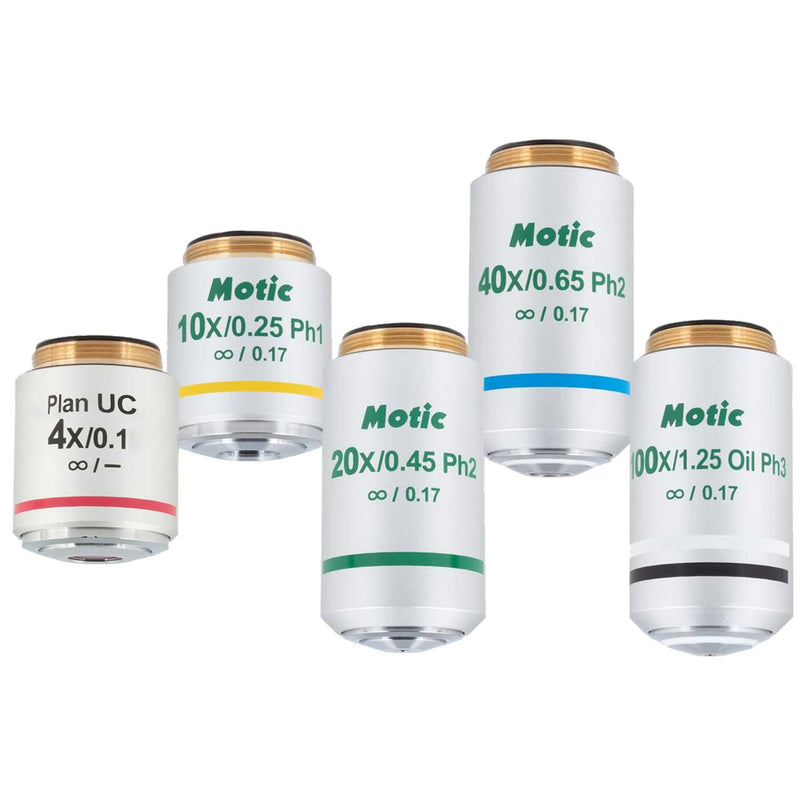

CCIS® Plan UC 4x - Plan Phase 10x, 20x & 40xS
Optional Plan Phase 100x Oil
|
| Condenser: |

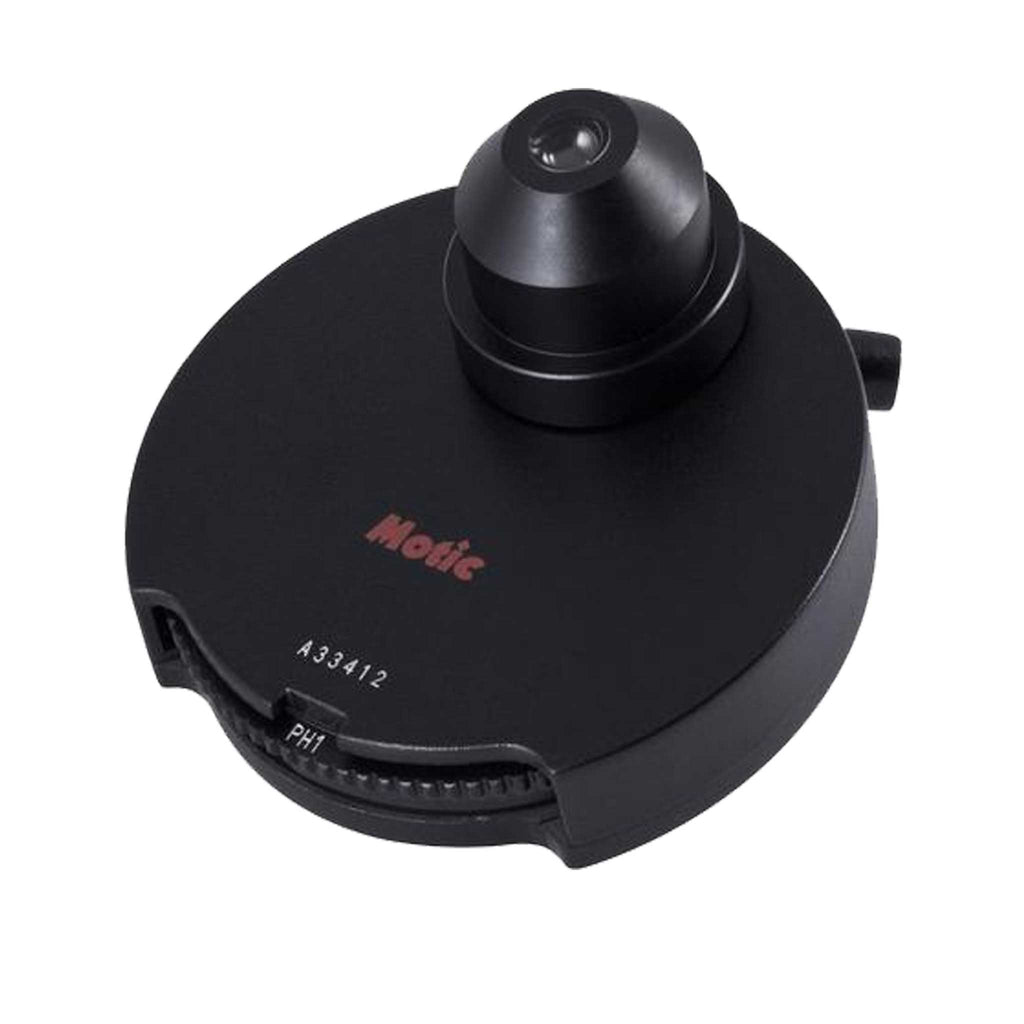

Phase contrast 5 position (BF, DF, Ph1, Ph2, Ph3) Turret Condenser
|
| Stage: |
Mechanical stage with built-in low position rackless coaxial stage control and double-slide holder |
| Illumination: |
Koehler illumination with 3W LED and halogen 6V/30W interchangeable with intensity control
|
| Focusing: |
Coaxial coarse and fine focusing system with tension adjustment. Fine focus precision of 2μm minimum. |
| Accessories: |
Simple Polarizer & Analyzer
Power cord, blue filter, immersion oil (5ml), allen hexagonal key, vinyl dust cover, HAL and LED module, Instruction manual, Phase centering telescope
|
| Warranty: |
5 Year Mechanical & Electrical |
