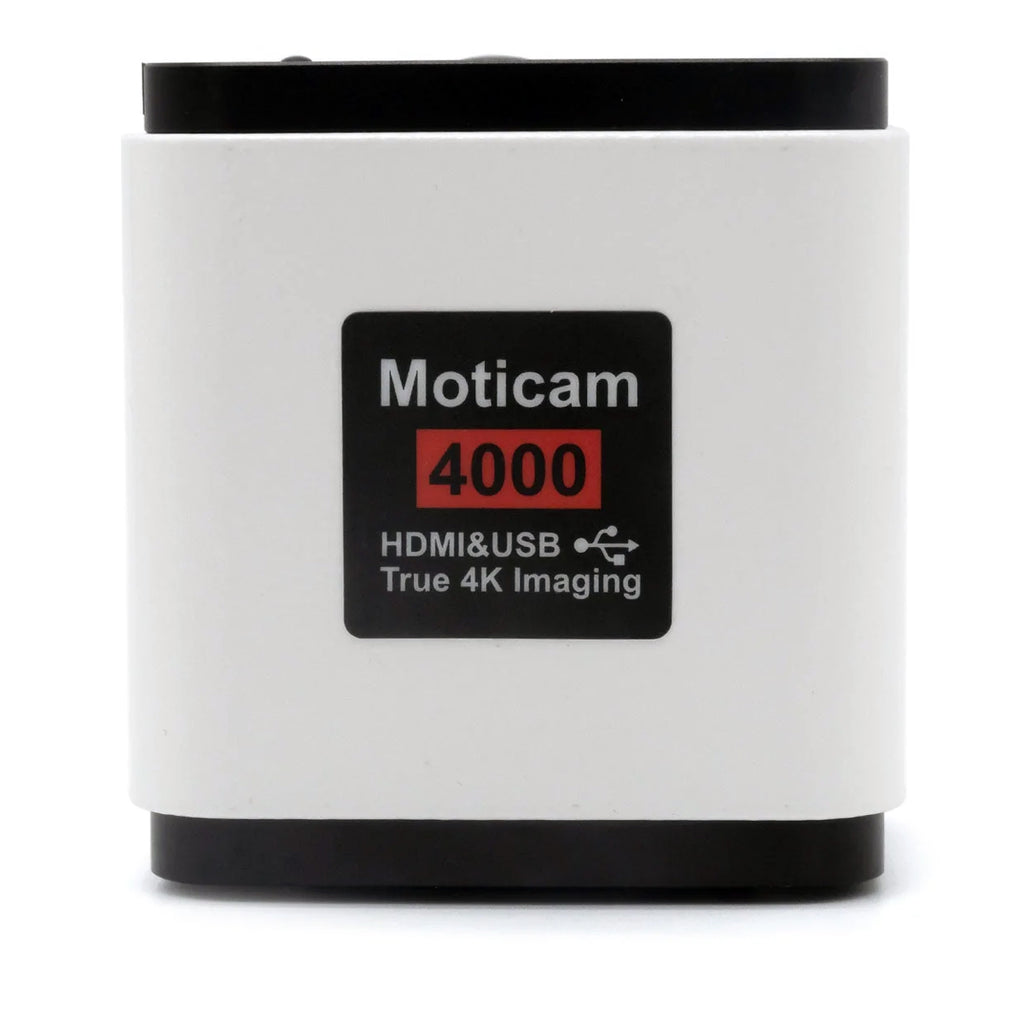

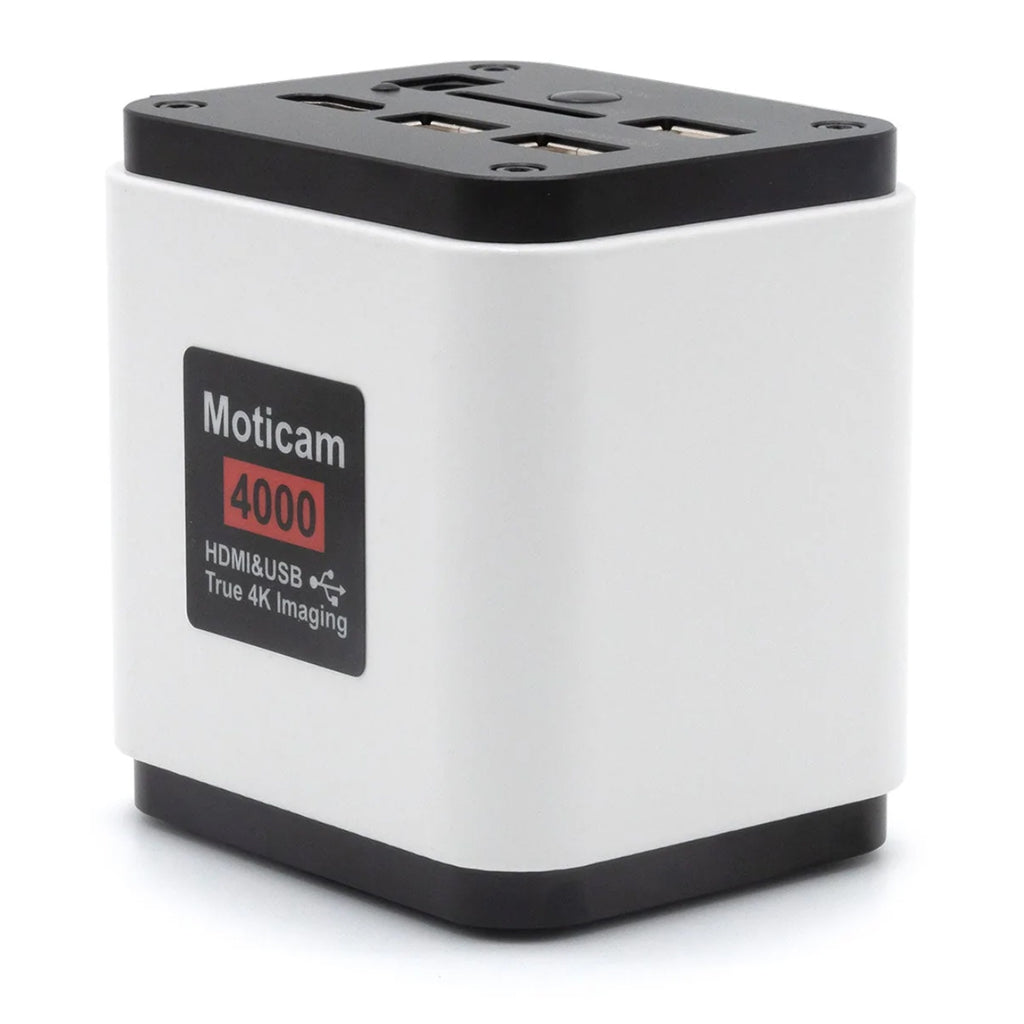

Motic Moticam 4000 - 4K UHD and USB Digital Microscope Camera
The Moticam 4000 is a 4K UHD camera designed for ease of use and the ability to output fast live images in Ultra HD at 4K (3840x2160) pixels.
In contrast to other cameras, the Moticam 4000 can be connected to a computer or via HDMI. Simply plug the camera into an HDMI port and use the onboard software and a USB mouse to display images on an HDMI monitor, or connect your camera to a Windows, Mac, or Linux computer via USB.
With an integrated SD card slot, you can save your images and videos without the need for a PC
Moticam 4000 Characteristics:
- View & Capture 4K images / videos directly to a removable SD card
- Onboard software for image control and capture
| MOTICAM 4000 SPECIFICATIONS |
| SENSOR: |
IMX334 |
| IMAGING AREA: |
7.68 x 4.32mm
|
| MAX FRAME RATE: |
30fps@3840*2160; 30fps@1920*1080 |
| IMAGE CAPTURE: |
8MP |
| SHUTTER: |
Progressive (Rolling Shutter)
|
| EXPOSURE: |
0.04~1000ms |
| SOFTWARE: |
Motic Images Plus 3.1 for Windows/Mac OS |
| PIXEL SIZE: |
2.0 x 2.0μm |
| DARK SIGNAL: |
505 mv with 1/30s; 0.1 mv with 1/30s
|
| OPERATING TEMPERATURE: |
From -10 to +50 Degrees Celsius non-condensing |
| OPERATING HUMIDITY: |
30~80%RH |
| LENS MOUNT: |
C-Mount (0.50x or 0.65x Required) |
| WARRANTY: |
5-Year |
| PACKAGE INCLUDES: |
12V Power Adapter, CS Ring, Motic 4-dot Calibration Slide, HDMI Cable, Manual, 12mm lens, Adapter φ30/ φ38, Macro Tube |
| INTERFACE & BUTTON FUNCTIONS |
| USB MOUSE: |
USB Mouse Input |
| USB VIDEO: |
USB Video Output
|
| USB: |
Data Storage |
| HDMI: |
HDMI Output |
| DC 12V: |
DC12V Power in
|
| SD: |
SD SD Card Slot |
| ON/OFF: |
Power On/Off Switch |
| LED: |
Power Off Red,Power On Blue |
| SPECIFICATION FOR HDMI OUTPUT |
| UI OPERATION: |
With USB Mouse |
| IMAGE CAPTURE: |
JPEG/TIFF Format with 4K(3840*2160) Resolution in SD Card
|
| VIDEO RECORD: |
4K(30fps@3840*2160) H264/H265 encoded MP4 file in SD Card |
| CAMERA CONTROL PANEL: |
Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control |
| TOOLBAR: |
Including Zoom, Mirror, Comparison, Freeze, Measurement, Cross, Browser Function
|
| MAX FRAMES PER SECOND (FPS): |
30fps@3840*2160; 30fps@1920*1080 |
| SPECIFICATION FOR USB OUTPUT |
| UI OPERATION: |
Motic Image Plus 3.1 |
| WHITE BALANCE: |
Auto White Balance
|
| COLOR TECHNIQUE: |
Ultra-FineTM Color Engine |
| RECORDING SYSTEM: |
Still Picture or Movie |
| MAX FRAMES PER SECOND (FPS): |
20fps@3840*2160
|
| PC REQUIREMENTS: |
CPU: Intel Core2 2.8GHz or Higher, Memory: 8GB or More, Display: 19" or Larger, Operating System: Windows 10/Mac OS X/Linux |
