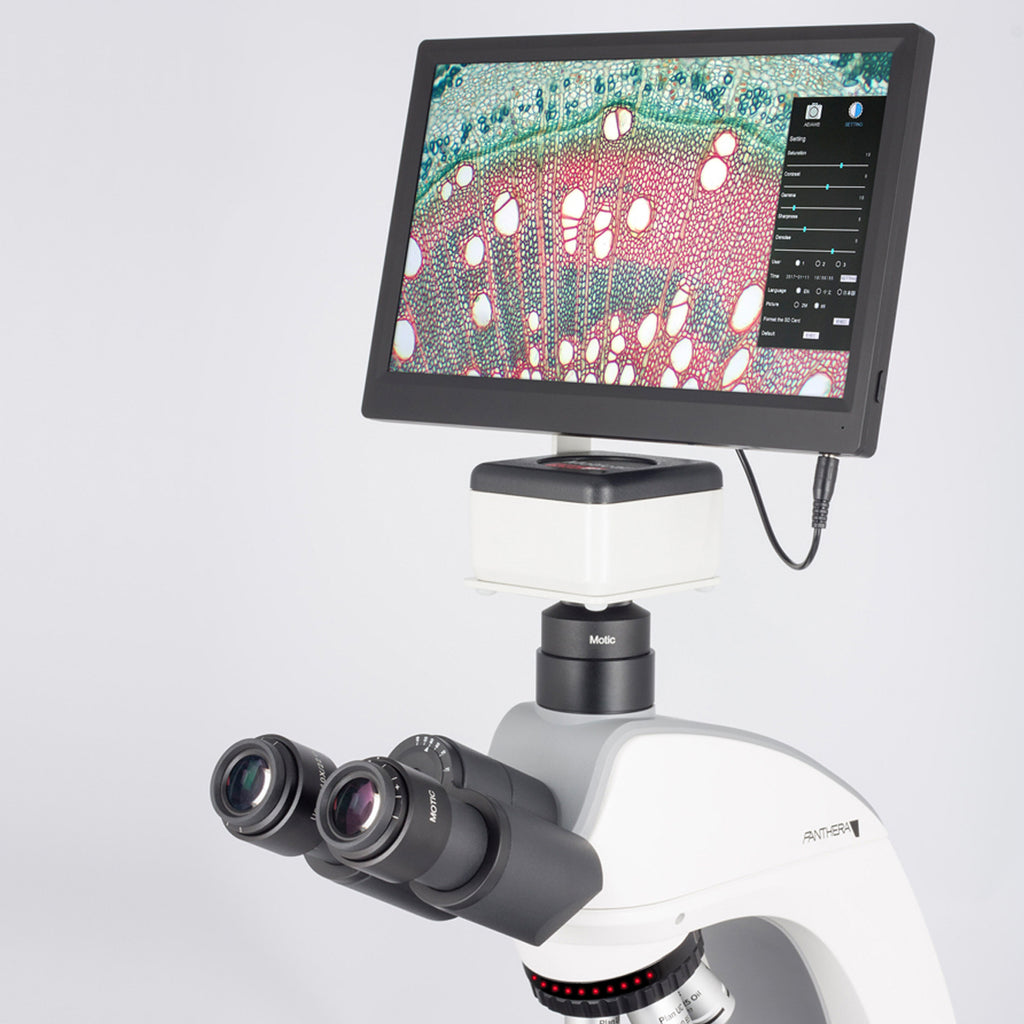

Motic Moticam 1080 BMH -1080p HDMI Digital Microscope Camera w/ HD Monitor
The Moticam 1080 BMH is a C-Mount multitasking microscopy camera, that delivers an impressive 1080p Full HD live image with maximum color fidelity on an integrated LCD screen.
It does not require a computer for standard operation, as it comes with an on-board software that will allow you to use it through its 11,6” Full HD integrated screen, with a mouse connected to the USB port of the camera.
Moticam 1080 BMH Characteristics:
- View & Capture 8MP images / videos directly to a removable SD card
- Onboard software for image control and capture
| MOTICAM 1080 BMH SPECIFICATIONS |
| SENSOR: |
CMOS |
| SENSOR SIZE: |
1/2.8"
|
| CAPTURE RESOLUTION (SD CARD): |
Still Image: 8.0MP (3840 x 2160) / Video: Full HD 1920 x 1080 |
| LIVE DISPLAY MODE (THROUGH USB): |
1920 x 1080 (Full HD) @ 30 fps |
| LIVE DISPLAY MODE (THROUGH HDMI): |
1920 x 1080 (Full HD) @ 60 fps
|
| PIXEL SIZE: |
2.8µm x 2.8µm |
| DATA TRANSFER: |
HDMI (1080p) and USB2.0 |
| SLOT: |
SD Card (max 32Gb) |
| SUPPORTED OS: |
Microsoft Windows XP SP3/Vista/7/8/10 and MAC OSX & Linux
|
| MIN. COMPUTER REQUIREMENTS: |
2GHz dualcore – RAM memory 2GB – Video memory min. 512 MB |
| SCREEN: |
LCD 11,6" Full HD |
| LENS MOUNT: |
C-Mount (0.35x or 0.50x Required) |
| WARRANTY: |
5-Year |
| PACKAGE INCLUDES: |
HDMI cable, USB 2.0 Cable (A male to A male Cable), Calibration Slide, Universal Power Supply, Motic Images Plus 3.0 for PC/OSX/Linux |
| ONBOARD SOFTWARE (HDMI MODE) |
| STANDARD TOOLS: |
Still image capture, Live image record, Zoom in & out, Magnifier, ROI, Mirror, Rotation, Split, Freeze, Cross line, Gallery |
| IMAGE ADJUSTMENTS: |
Auto/Manual Exposure mode, Gain, Target Brightness setting, Light Frequency, Auto/Manual White Balance mode
|
| ADVANCED SETTINGS: |
Saturation, Contrast, Gamma, Sharpness, Denoise, User settings, System’s Time setting, Language (English, Chinese and Japanese), Format SD card |
