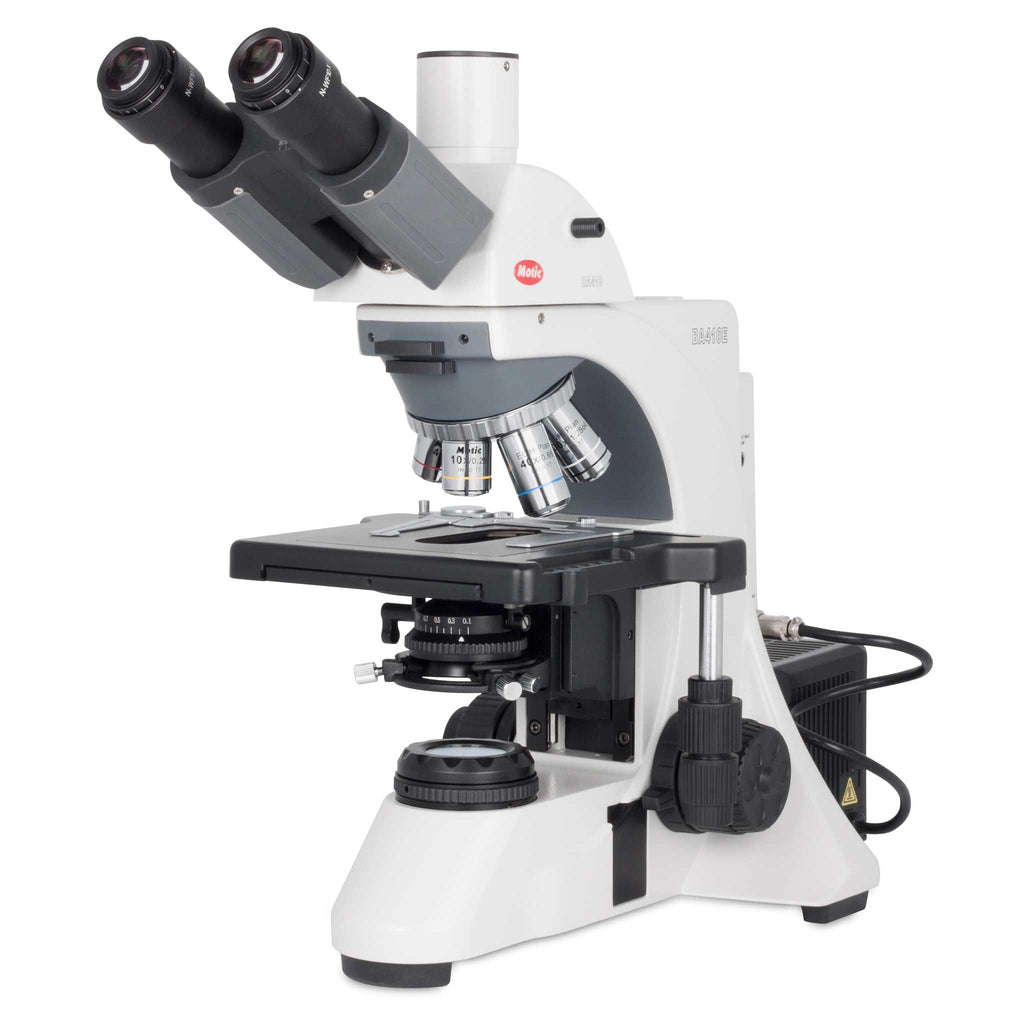

Motic BA410E Elite Premium Phase Microscope
The Motic BA410E Premium Phase Microscope is the perfect choice for clinical and routine biological applications requiring phase contrast. The BA410E premium phase package features a trinocular viewing head and a Plan EC-H 4x, EC-H Phase 10x, 40x and optional Phase 100x (Oil) objectives.
The Motic BA410E stands out with it's Increased numerical apertures, providing expanded resolution power for a more detailed specimen evaluation.
| MOTIC BA410E PHASE SPECIFICATIONS |
| Optical System: |
Colour Corrected Infinity Optical System (CCIS®) |
| Head: |
Trinocular head (20/80), Siedentopf type
|
| Eyepieces: |
Widefield N-WF 10X/22mm with diopter adjustment
|
| Nosepiece: |
Reversed sextuple
|
| Objectives: |

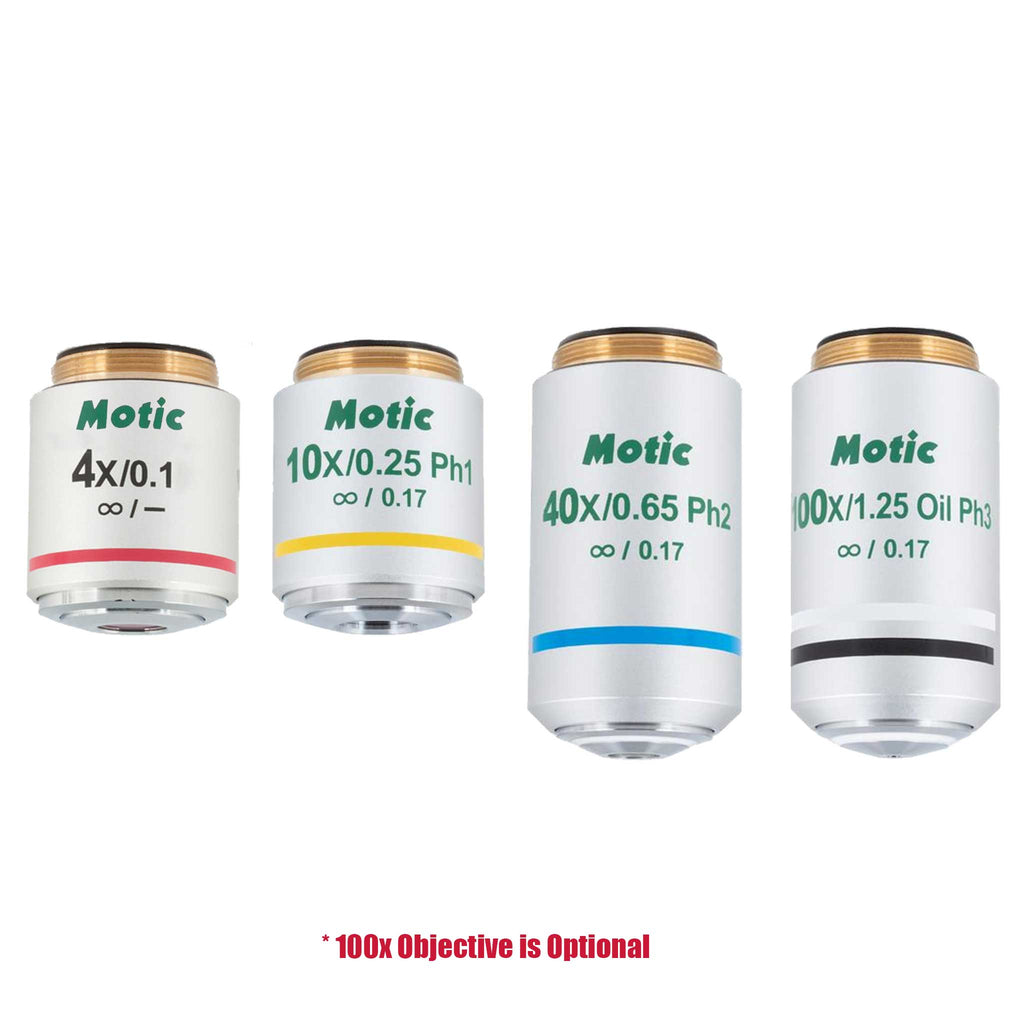

CCIS® EC-H Plan Achromat 4x, CCIS® EC-H Plan Phase 10x & 40x
-OR-
CCIS® EC-H Plan Achromat 4x, CCIS® EC-H Plan Phase 10x, 40x & 100x (Oil)
|
| Condenser: |

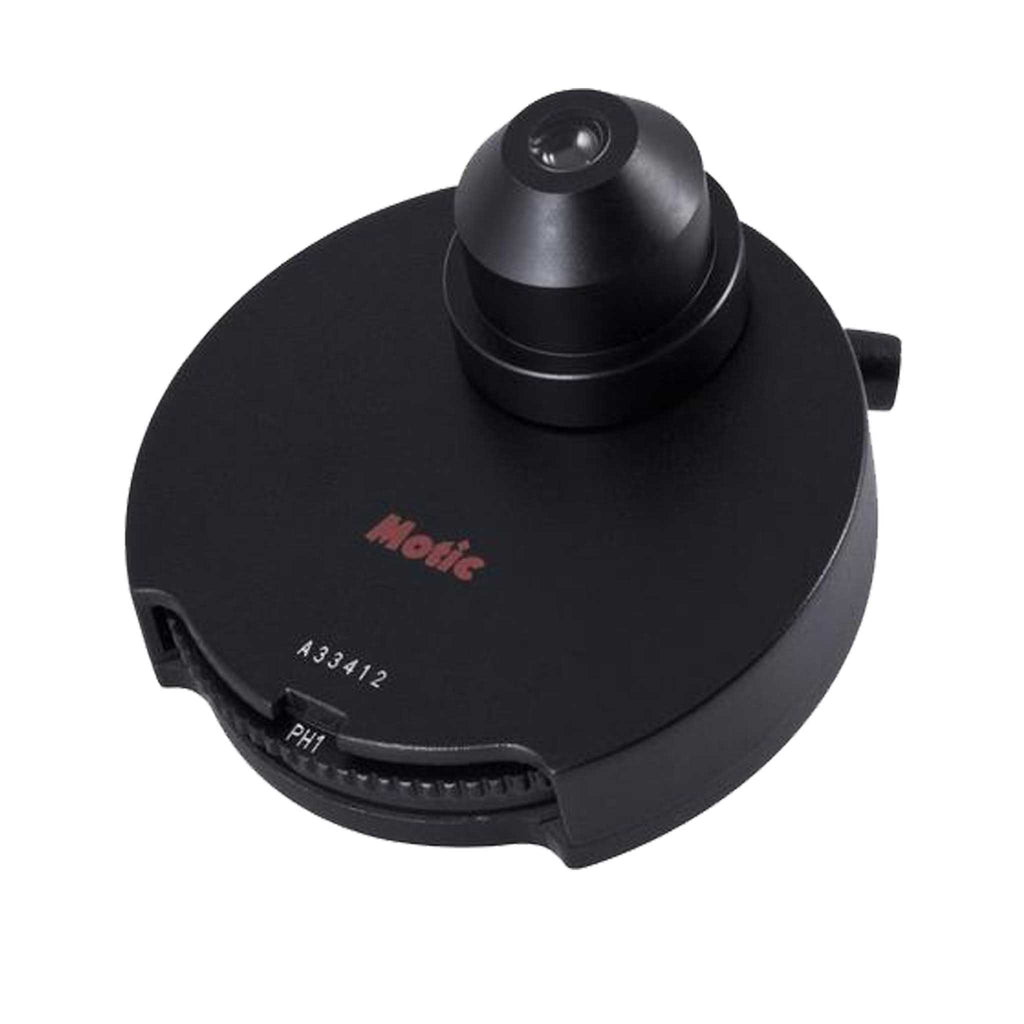

Phase contrast 5 position (BF, DF, Ph1, Ph2, Ph3) Turret Condenser |

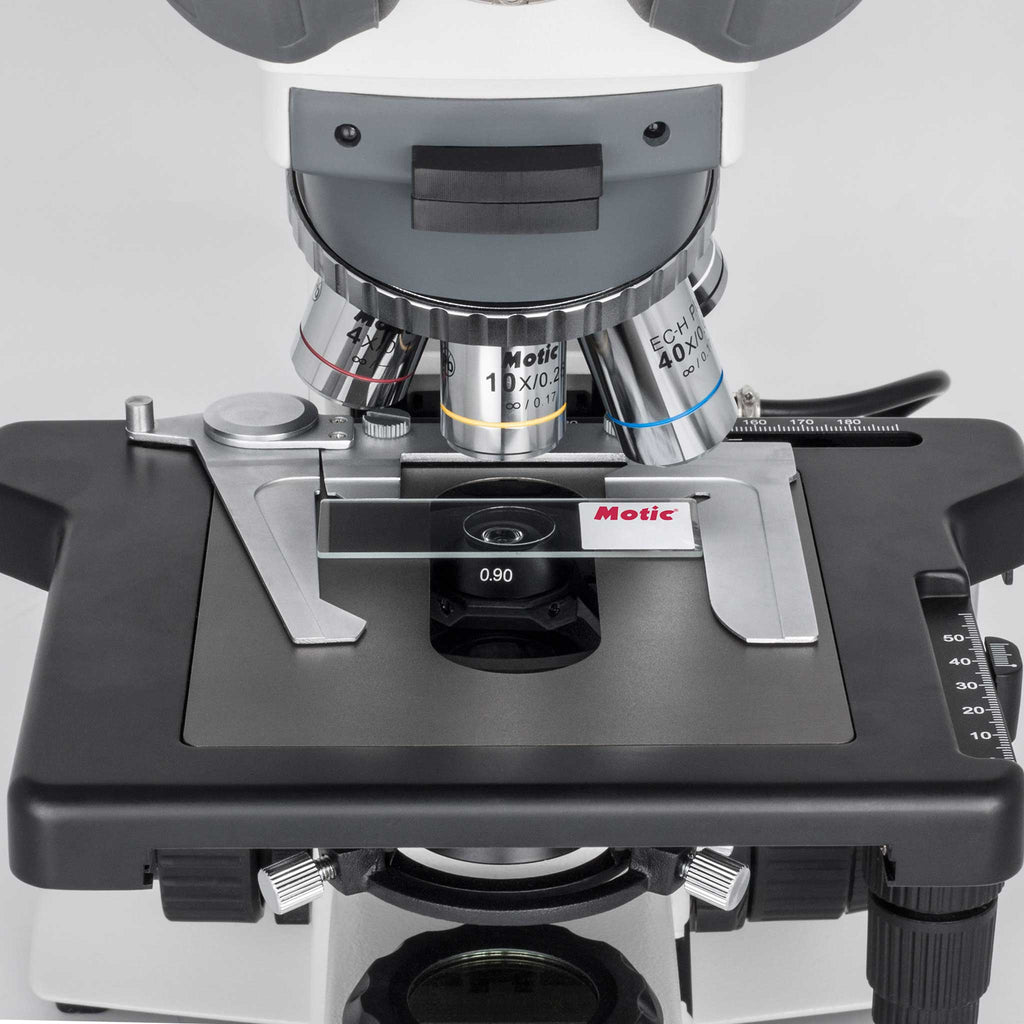

| Stage: |
Mechanical stage with built-in low position rackless coaxial stage control, ceramic insert and sample holder |
| Illumination: |
Koehler Quartz halogen 12V/50W with intensity control
-AND-
Koehler illumination 3W LED with intensity control
|
| Focusing: |
Coaxial coarse and fine focusing system with tension adjustment |
| Accessories: |
Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, arm rest
|
| Warranty: |
5 Year Mechanical & Electrical |
