Motic BA310 Elite Upright Microscope
The new Motic BA310 Elite upright microscope has been redesigned to incorporate the latest in mechanical and optical advances.
The BA310 Elite features a new rackless mechanical stage and improved CCIS Plan EC objectives that provide greater clarity and contrast. 3 Watt LED illumination is standard for even, long-lasting light The BA310E is available with a binocular or trinocular viewing head and your choice of CCIS Plan EC 4x, 10x & 40x or 4x, 10x, 40x & 100x (oil) objectives.
The Motic BA310 Elite is the perfect choice for laboratory professionals, Universities and advanced biological applications..
| MOTIC BA310E SPECIFICATIONS |
| Optical System: |
Colour Corrected Infinity Optical System (CCIS®) |
| Head: |

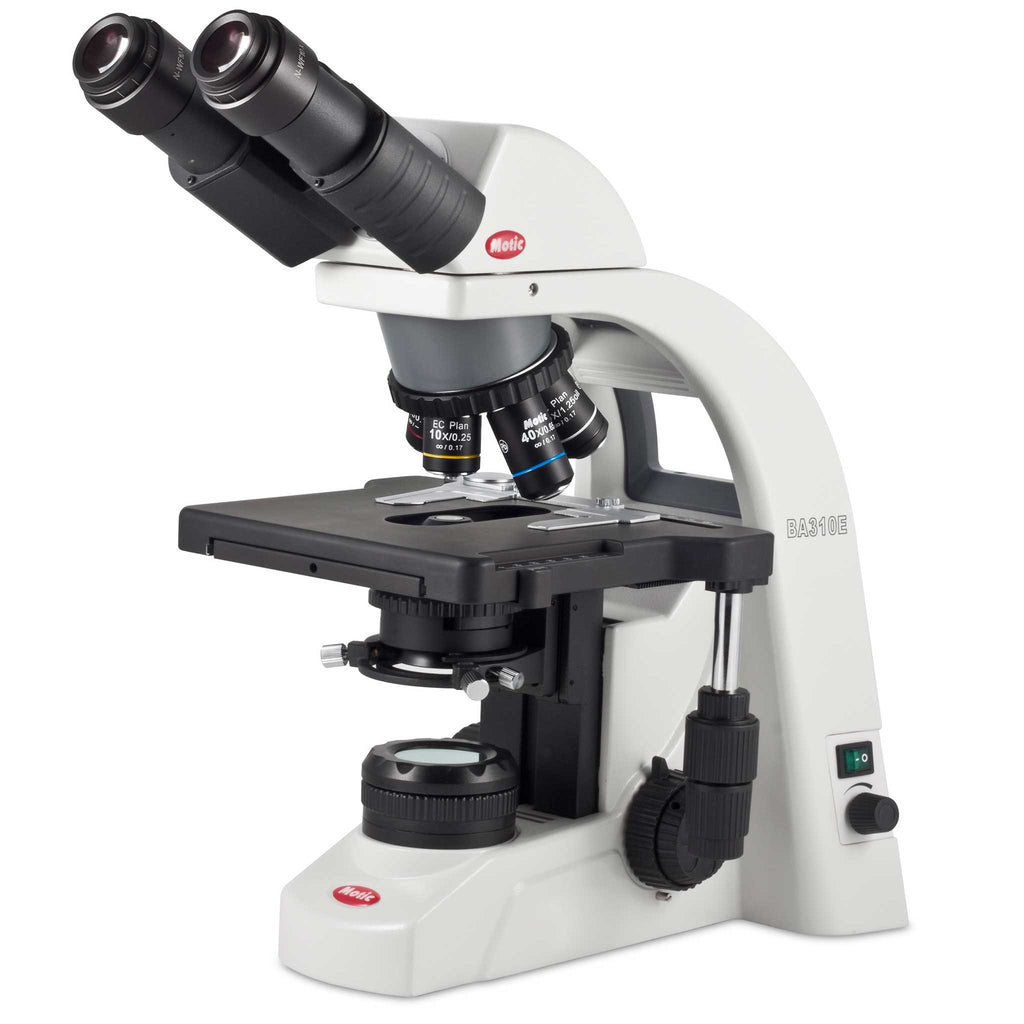

Binocular head, Siedentopf type, 360° swiveling
-OR-

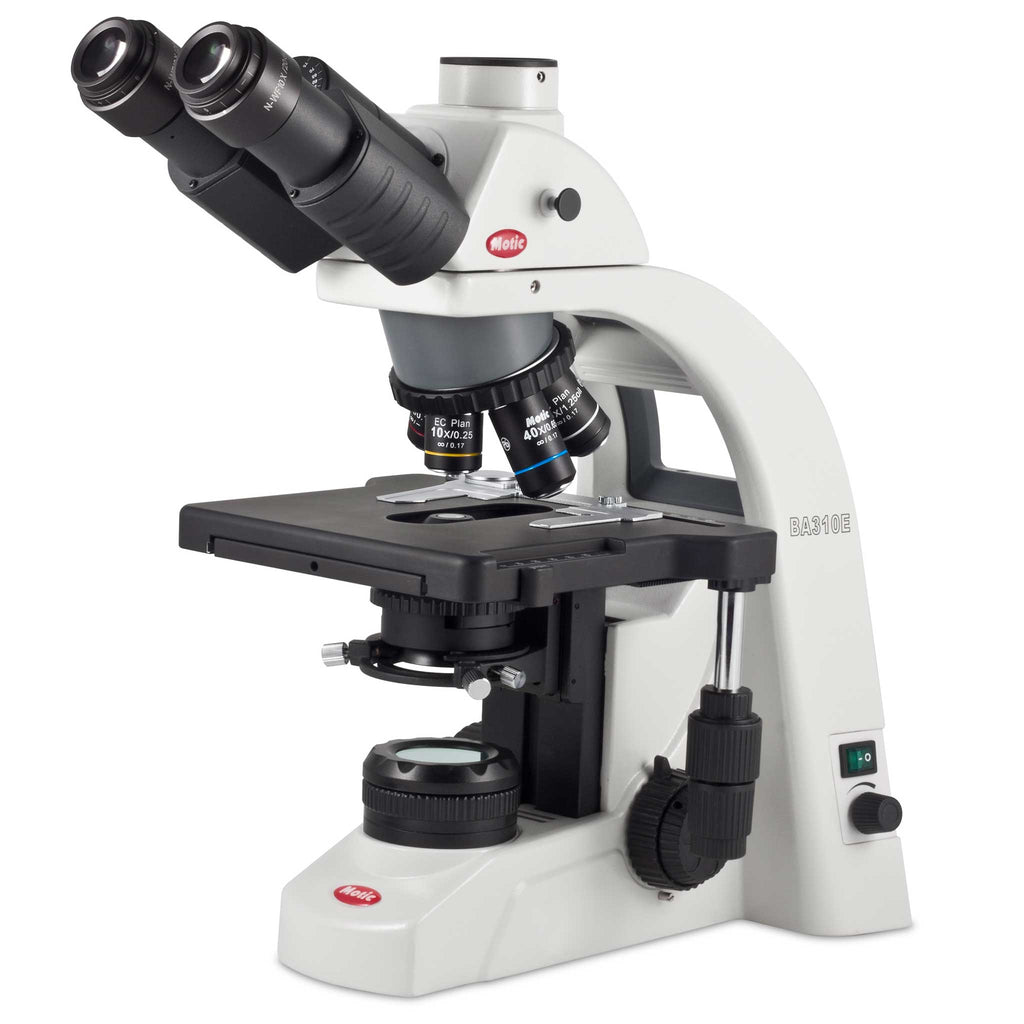

Trinocular head (50/50), Siedentopf type, 360° swiveling
|
| Eyepieces: |
Widefield N-WF10X/20mm with diopter adjustment
|
| Nosepiece: |
Reversed Quintuple
|
| Objectives: |
CCIS® EC Plan Achromat 4x, 10x & 40x
-OR-
CCIS® EC Plan Achromat 4x, 10x, 40x & 100x (Oil)
|
| Condenser: |
Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders |
| Stage: |
Mechanical stage with built-in low position rackless coaxial stage control with tension adjustment and sample holder |
| Illumination: |
Koehler illumination 3W LED with intensity control
|
| Focusing: |
Coaxial coarse and fine focusing system with tension adjustment |
| Accessories: |
Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, arm rest
|
| Warranty: |
5 Year Mechanical & Electrical |
