Description

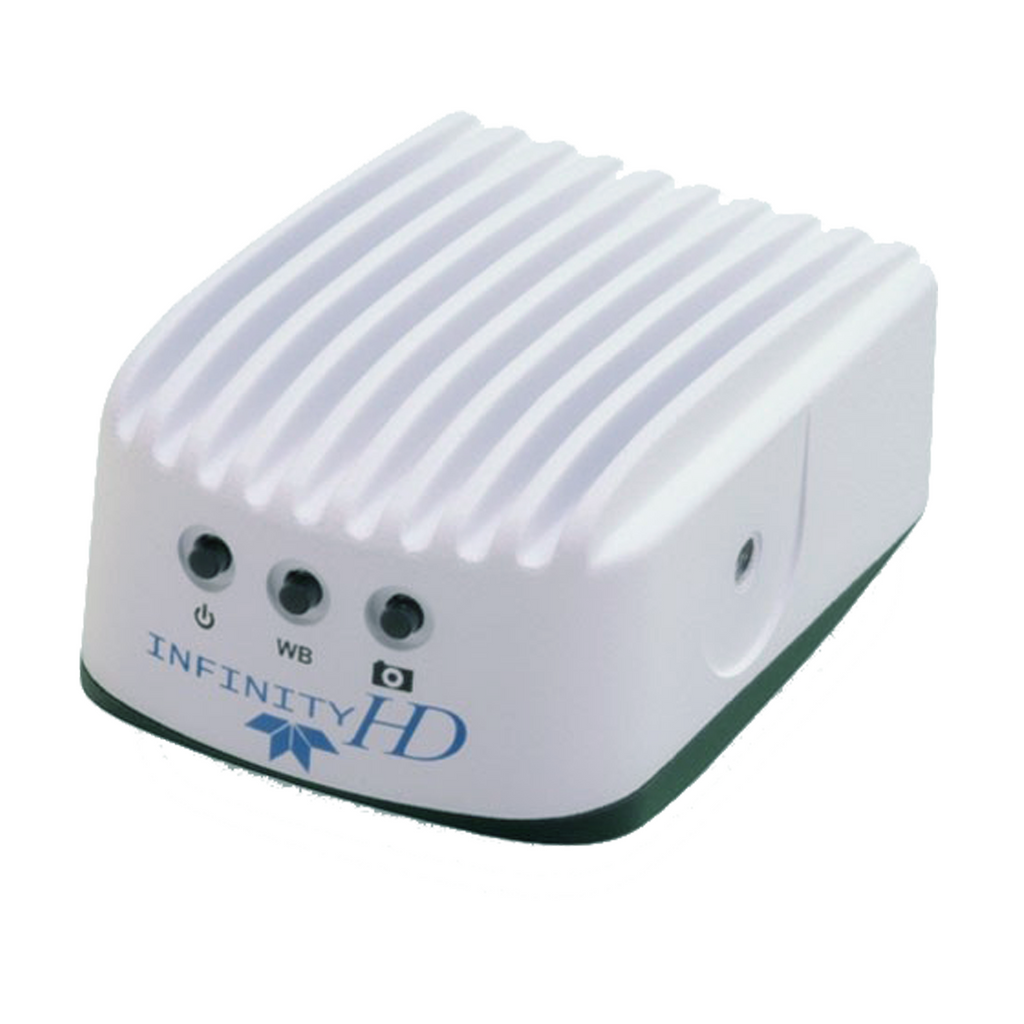

Lumenera INFINITYHD - 1080p60 HD Digital Microscopy Camera - HDMI
A high definition CMOS color microscopy camera with full 1080p60 preview, excellent color reproduction, and extremely fast frame rates streaming directly to a monitor, the INFINITYHD from Lumenera is a fully featured, stand-alone high definition scientific imaging solution with full 1080p60 preview, superb color reproduction, and extremely fast frame rates.
Operate the camera by attaching it directly to a monitor and avoiding the need to connect it to a PC, or use the plug-and-play USB 2.0 picture capturing feature. In any life science, clinical, or material application, the INFINITYHD responds swiftly to changes in lighting due to its incredibly fast response times. An HDMI connector is used to output video to either a DVI or an HDMI-equipped monitor. Three on-camera buttons provide quick access to the power, white balance, and image capturing functions.
Superior color reproduction has been achieved through years of experience in the microscope sector, which has allowed Lumenera to build specific color algorithms that provide great color reproduction. As a result, a sample preview on a computer monitor is produced that is nearly identical to the view via the microscope eyepiece.
THE INFINITYHD camera captures images at the needed 60 frames per second for actual high definition, unlike many competitors who claim to be HD but deliver images at much lower frame rates than the INFINITYHD camera. This allows for seamless manipulation of the preview without experiencing any lag or jerkiness
Image capturing is made possible by the integrated INFINITYHD software. The program is simple to use and can be set up in a matter of minutes. Once the camera has been installed, it can be utilized either independently or through a high-speed USB 2.0 connection, depending on the configuration.
Specifications
- 1/3" (16:9) CMOS 2 megapixel sensor
- 1080p60 high definition format 1920 x 1080
- Direct output to monitor
- 3 on-camera buttons for power, white balance and capture
| CAMERA SENSOR | |
|---|---|
| Image Sensor: | CMOS, Progressive Scan, Avail in Color |
| Optical Format: | 1/3" |
| Frame Rate: | 60 |
| Effective Pixels: | 1920 x 1080, 2.7 µm square pixels |
| Dynamic Range: | 65 dB |
| Bit Depth: | 8-bit |
| Read Noise: | 8.7 e- |
| CAMERA CONTROLS | |
| Mass: | 330 g |
| Power Requirement: | USB bus power (or external 5 V DC, 500 mA) |
| Power Consumption: | ~2.5 W |
| Operating Temperature: | 0 to 50 ° C |
| Operating Humidity: | 5 - 95 %, Non-condensing |
| Exposure Control: | Automatic control |
| White Balance: | One shot automatic control (with INFINITYHD) |
| Interface Connector: | HDMI Connector |
| Lens Mount: | C-Mount. Compatible with all microscope brands. |
