Description

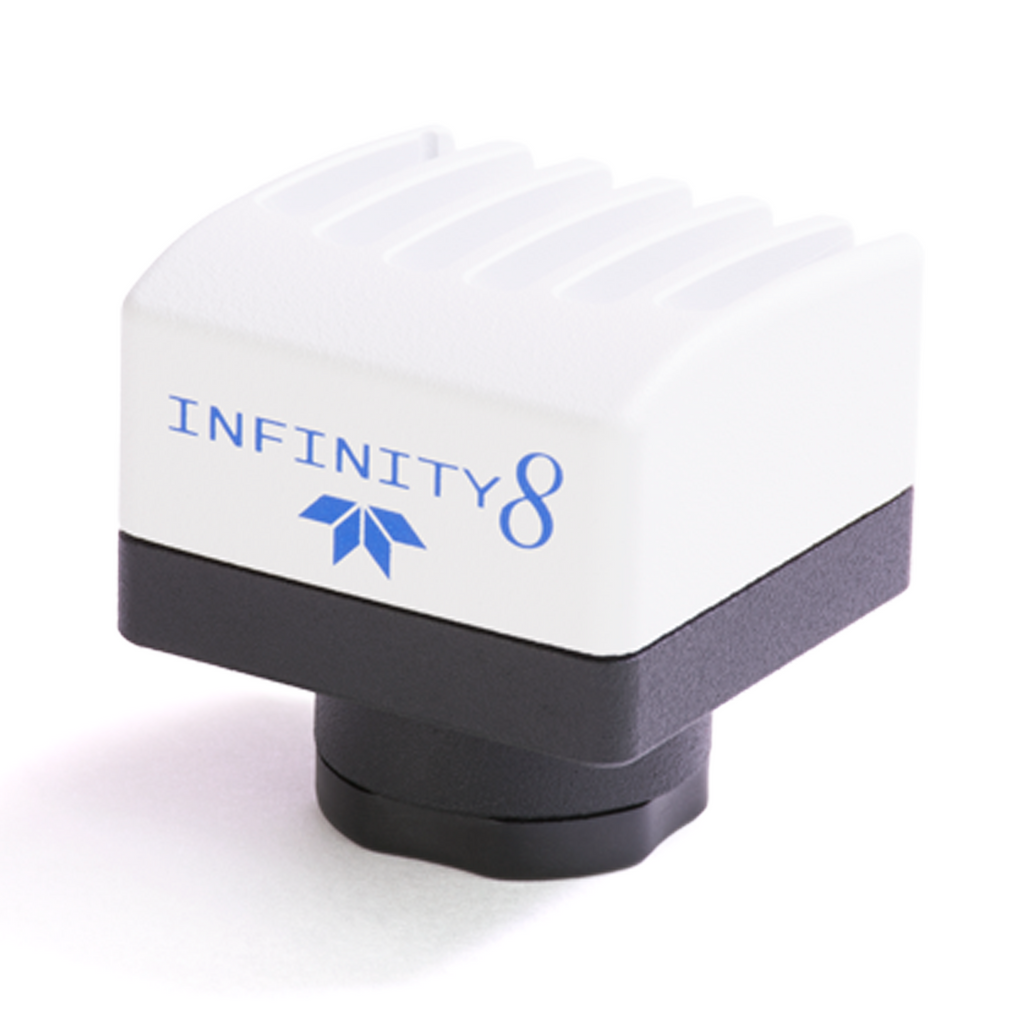

The INFINITY8-2M is the new go-to microscope camera for routine fluorescence imaging while working with a limited budget. With its large light-gathering pixels, wide field of view, and low noise characteristics, this camera enables labs to have a dedicated monochrome camera for their low-light imaging requirements, reducing costs and increasing productivity. And, with refresh rates of up to 96 frames per second at full resolution, the INFINITY8-2M has remarkable low light sensitivity and allows for precise images even under fluctuating lighting circumstances.
A solution that's affordable
In today's environment, constrained lab budgets and the need to achieve more with less is a difficult task. Acquiring a dedicated monochrome camera for routine fluorescence imaging is now achievable, thanks to intuitive, feature-rich software that makes it accessible - but without the high price tag.
Do you need a replacement for a cooled camera?
Designed to be a low-cost replacement for an older cooled camera that is no longer functional or is incompatible with today's PCs and software, the INFINITY8-2M is a high-quality alternative. Because of its large pixels and 1-inch sensor, this ultra-sensitive camera boasts remarkable sensitivity, lightning-fast response time, and a wide field of view – all for a price that has never before been seen in the industry. Take full advantage of a 1X coupler in order to see even more detail.
FLIC is used to achieve maximum responsiveness.
The INFINITY8-2M's FLIC (Fluorescence Illumination Image Capture) technology lowers read noise and allows for the highest possible response time. If you're shooting in low light, the FLIC feature boosts the camera's sensitivity while minimizing noise to an absolute bare minimum. This is particularly useful for fluorescence imaging, where fine features can be difficult to distinguish but short exposures are required.
Take a look at more of your sample
The 1 Inch sensor can see more of your sample than any other sensor size. Make use of a 1X coupler and save money.
Specifications
- Monochrome CMOS sensor with 1-inch optical format
- 1.7 megapixel camera with fast frame rates of 96 fps at full resolution (1608 x 1104)
- Direct USB3 interface for fast image delivery and simplified connectivity
- Compact form factor
- Support for locking industrial micro USB on the back for power and control
- INFINITY ANALYZE microscopy software included with purchase. No annual license fees.
- Software support for Windows and Mac, along with third-party plugins for MetaMorph and MicroManager
- Selectable 8 or 12-bit pixel data
- Recommended coupler: 1x
| CAMERA SENSOR | |
|---|---|
| Image Sensor: | 1.7 MP Monochrome CMOS sensor – Sony IMX432 |
| Optical Format: | 1" |
| Frame Rate: | Maximum sustainable frame rate of 96 |
| Full Well Capacity: | 100.4K e- in normal mode and 19.2K e- in FLIC mode |
| Dark Current: | 1.0 e-/s (at 22 ºC ambient, 35 ºC internal camera) |
| Pixel Size: | 9.00 x 9.00 μm |
| Dynamic Range: | ~73 dB |
| Bit Depth: | 8 or 12-bit |
| Read Noise: | 21.6 e- in normal mode and 4.4 e- in in FLIC mode |
| CAMERA CONTROLS | |
| Mass: | 108 g |
| Power Requirement: | 5V via Power Over USB3 Cable |
| Power Consumption: | 2.3 W to 3.6 W |
| Operating Temperature: | 0 to 50 ° C |
| Operating Humidity: | 5 - 95 %, Non-condensing |
| Exposure Control: | Manual and automatic control |
| White Balance: | Manual and automatic control |
| Interface Connector: | USB3 cable. GPIO cable available as an accessory. |
| Lens Mount: | C-Mount. Compatible with all microscope brands. |
