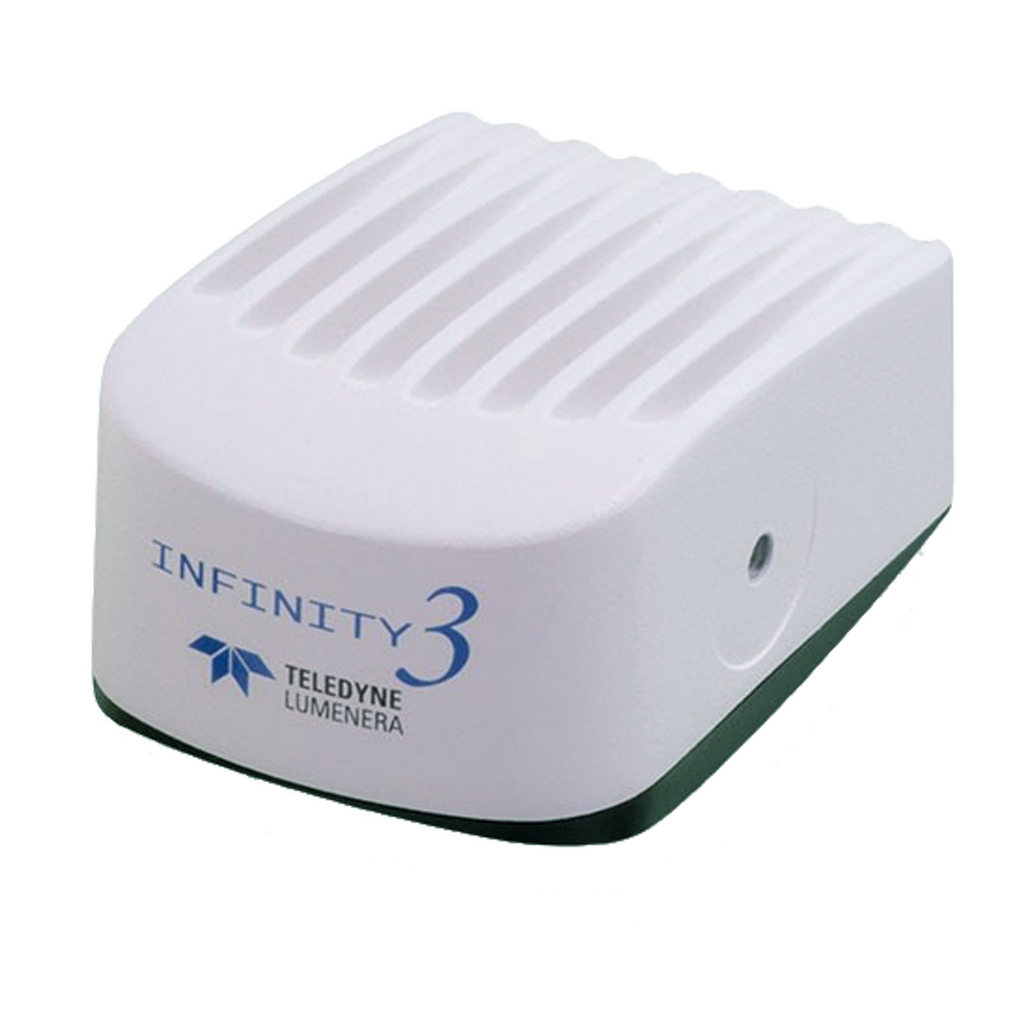

Lumenera 3-3UR - 2.8 Megapixel CCD Digital Microscope Camera - USB 3.0
The new INFINITY3-3UR uncooled scientific digital camera is equipped with a Sony ICX674 CCD sensor and can capture images at a rate of 53 frames per second at full 2.8 megapixel quality when connected to a high-speed USB 3.0 interface. Constructed for use in scientific and industrial applications that demand perfect color reproduction, great sensitivity, higher resolution, and rapid processing speeds. Performance from a camera that has not been cooled.
When it comes to low-light situations, the INFINITY3-3UR boasts unrivaled light sensitivity and performance. This camera, which is based on Sony's EXview HAD ll technology, has an extraordinarily wide dynamic range, pixels with a size of 4.54 x 4.54 m and very low noise. The INFINITY3-3UR provides great image quality and value for low-light applications such as fluorescence and near-infrared imaging, which are both demanding.
The INFINITY3-3UR takes advantage of the latest USB 3.0 technology, which transfers images at a rate of 5 Gbits/sec, allowing for the fastest image transfer possible - even at the highest resolution. It is possible to synchronize image captures using either a hardware or a software trigger. Even in the most demanding systems, the 128 MB of onboard memory for frame buffering assures stable and reliable image output at full frame rate and best resolution.
The camera comes with two software programs: INFINITY CAPTURE, a simple image capture program, and INFINITY ANALYZE, a comprehensive image analysis package that includes camera control, measurement, annotation, tiling, and post capture improvement capabilities. The combination of a camera and software results in a complete microscope imaging solution tailored to your specific application.
Specifications
- 53 fps at 2.8 megapixel, 66 fps at full HD (1936 x 1456)
- Industry leading Sony EXview HAD ll sensor technology
- Color or monochrome ICX674 CCD sensor with 2/3” optical format
- High-speed USB 3.0 interface for ease of installation on any computer
- 128 MB of onboard memory for frame buffering results in reliable image delivery for demanding systems
- Select 8 and 14-bit pixel data modes
| CAMERA SENSOR | |
|---|---|
| Image Sensor: | Sony ICX674 , CCD, color or mono |
| Optical Format: | 2/3" |
| Pixel Size: | 4.54 x 4.54 µm square pixels |
| Frame Rate: | 53 fps at 1936 x 1456, 66 fps at 1920 x 1088, 109 fps at 640 x 480 |
| Bit Depth: | 8 and 14-bit |
| Binning Modes: | 2 x 2, 4 x 4, 8 x 8 (3 x 3 mono only) |
| Region of Interest Control: | Any mulitple of 16 x 16 pixels (quad tap mode) |
| Dark Current Noise: | <1 e-/s (at 22 ºC ambient, 41 ºC internal) |
| Read Noise: | 6.2 e- (4 taps, 16 fps, 25 ºC ambient, 41 ºC internal) |
| CAMERA CONTROLS | |
| Mass: | 340 g |
| Power Requirement: | External 5 V DC, 1.2 A, power supply (included) |
| Power Consumption: | 6 W maximum in full frame rate mode |
| Operating Temperature: | 0 to 50 °C |
| Operating Humidity: | 5 to 95%, non-condensing |
| Data Interface: | USB 3.0 |
| Dimensions: |
57.15 x 97.79 x 39.62 mm |
| Lens Mount: | Adjustable C-mount standard |
