Description

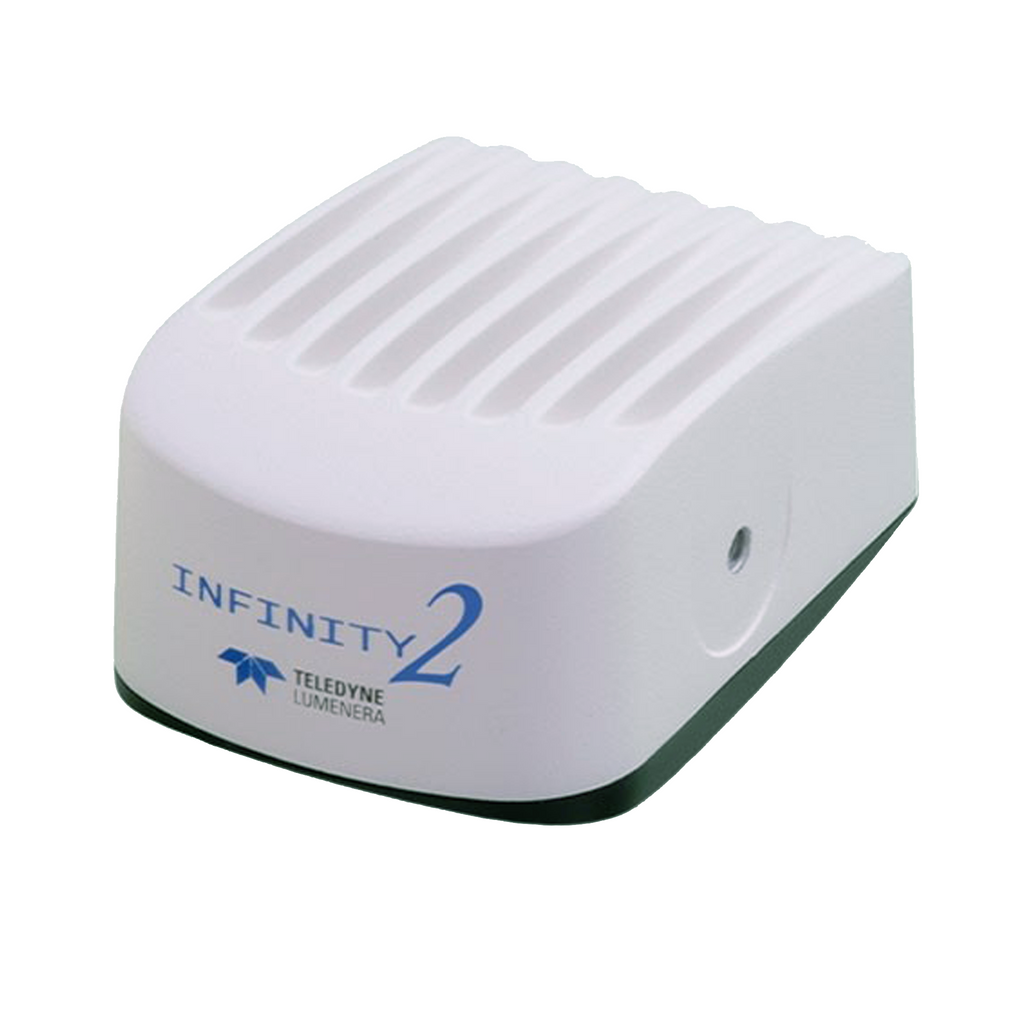

Lumenera's INFINITY2-5 digital CCD camera has outstanding sensitivity, high resolution, and a broad dynamic range, making it ideal for brightfield, darkfield, and DIC imaging applications.
With a resolution of 2448 x 2048 and on-board processing, the INFINITY2-5 provides exceptional image quality for a wide range of scientific applications. Live video preview allows you to fine-tune your focus in real time, while auto exposure and auto white balance help you capture the best possible image. Our TWAIN drivers allow for seamless interface with popular third-party imaging applications, while a straightforward user application gives camera controls and full integration with third-party imaging applications.
Years of experience in the microscopy business have enabled Lumenera to develop specific color algorithms that ensure excellent color reproduction in a wide range of samples, from stained cells to semiconductor wafer examination.
With every INFINITY camera, you'll receive INFINITY ANALYZE software, which allows you to perform advanced camera control functions like image processing, measuring, and annotation. You'll also get INFINITY CAPTURE, which is an intuitive user interface that includes all of the basic features you'll need to control your INFINITY camera and capture images.
Specifications
- Progressive scan 2/3" Sony Super HAD ICX655 5.0 megapixel CCD sensor
- High-speed USB 2.0 interface for ease of installation on any computer
- Full color sub-windowing allows for rapid focus and scanning of samples
- Crisp color quality for the most demanding brightfield and darkfield microscopy applications
- 9 fps at full 2448 x 2048 resolution, 23 fps at 640 x 480 (with ROI)
- Select 8 & 14-bit pixel data modes
CAMERA SENSOR | |
---|---|
Image Sensor: | Sony Super HAD ICX655, CCD, color or mono, progressive scan |
Effective Pixels: | 2448 x 2048, 3.45 µm square pixels |
Frame Rate: | 9 fps at 2448 x 2048 |
Dynamic Range: | 58 dB |
Bit Depth: | 8 or 14-bit |
Read Noise: | 10 e- |
CAMERA CONTROLS | |
Mass: | 330 g |
Power Requirement: | USB bus power (or external 5 V DC, 500 mA) |
Power Consumption: | ~2.5 W |
Operating Temperature: | 0 to 50 ° C |
Operating Humidity: | 5 - 95 %, Non-condensing |
Exposure Range: | 161 μs to 500 ms (video) 161 μs to 71 min (snapshot) |
Shutter: | Global |
Exposure Control: | Manual and automatic control |
White Balance: | Manual and automatic control |
Gain Range: | 1 to 25.6 x |
Interface Connector: | USB 2.0 high-speed interface |
Dimensions (L x W x H): | 3.85 x 2 x 2.75 inches |
Lens Mount: | Adjustable C-Mount standard |
