Description

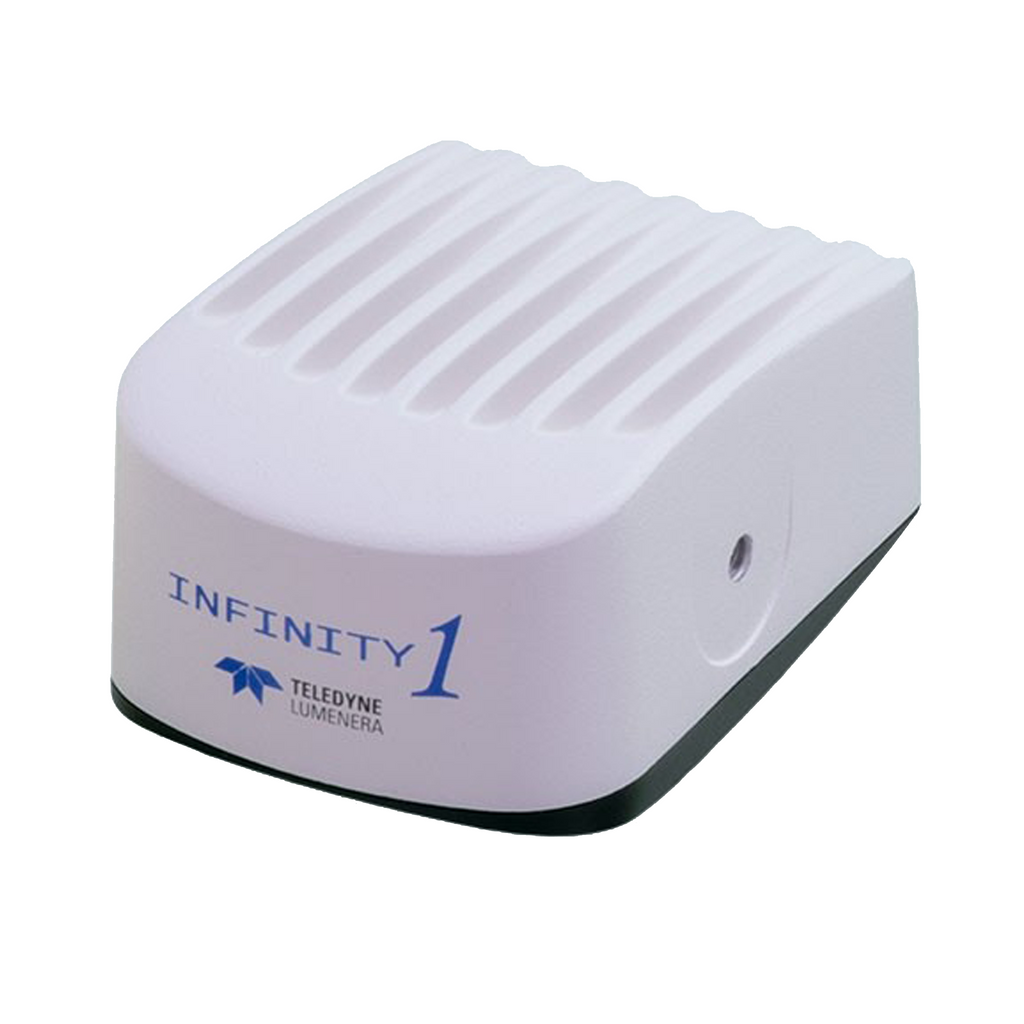

The INFINITY1-5, 5.0 Mega Pixel digital microscope camera from Lumenera, is designed to be a cost-effective and versatile solution for documenting in a variety of fields such as life science, clinical, material science, and industrial applications.
With a stunning 2592 x 1944 video preview at speeds of 7 frames per second (fps), the INFINITY1-5 camera is ideal for applications that require extremely high resolution. The camera is available in both color and monochrome versions. Its full 5.0 megapixel resolution enables users to see fine detail in samples while simultaneously providing a high resolution preview on large monitors and overhead projectors.
Years of experience in the microscopy business have enabled Lumenera to develop specific color algorithms that ensure excellent color reproduction in a wide range of samples, from stained cells to semiconductor wafer examination.
With every INFINITY camera, you'll receive INFINITY ANALYZE software, which allows you to perform advanced camera control functions like image processing, measuring, and annotation. You'll also get INFINITY CAPTURE, which is an intuitive user interface that includes all of the basic features you'll need to control your INFINITY camera and capture images.
Specifications
- Low noise progressive scan 1/2.5" 5.0 megapixel image sensor
- Full color sub-windowing for rapid focus and scanning of samples
- 7 fps at full 2592x1944 resolution and 60 fps at 640x480 resolution
- High-speed USB 2.0 for ease of installation on any computer
- Selectable 8 & 12-bit pixel data modes
| CAMERA SENSOR | |
|---|---|
| Image Sensor: | Micron MT9P031, 1/2.5” format, CMOS, color or mono, 5.7 x 4.28 mm array |
| Effective Pixels: | 2592 x 1944, 2.2µm square pixels |
| Frame Rate: | 7 fps at 2592 x 1944, 60 fps at 640 x 480 |
| Dynamic Range: | 49 dB |
| Bit Depth: | 8 or 12-bit |
| Read Noise: | 20 e- |
| CAMERA CONTROLS | |
| Dimensions: | 2.25 x 3.85 x 1.56 inch / 57.15 x 97.79 x 39.62 mm |
| Mass: | 330g |
| Power Requirement: | USB bus power only |
| Power Consumption: | ~2.5 W |
| Operating Temperature: | 0 to +50 °C |
| Operating Humidity: | 5 to 95%, non-condensing |
| Exposure Range: | 106 µs to 3 s (video), 106 µs to 3 s (snapshot) |
| Shutter: | Rolling shutter with single frame capture |
| ROI: | Any multiple of 8 x 8 pixels, 32 x 32 pixels minimum |
| Exposure Control: | Automatic and manual |
| White Balance: | Automatic and manual |
| Gain Range: | 1 to 3.38 x |
| Interface: | USB 2.0 high-speed interface |
| Lens Mount: | Adjustable C-mount standard |
