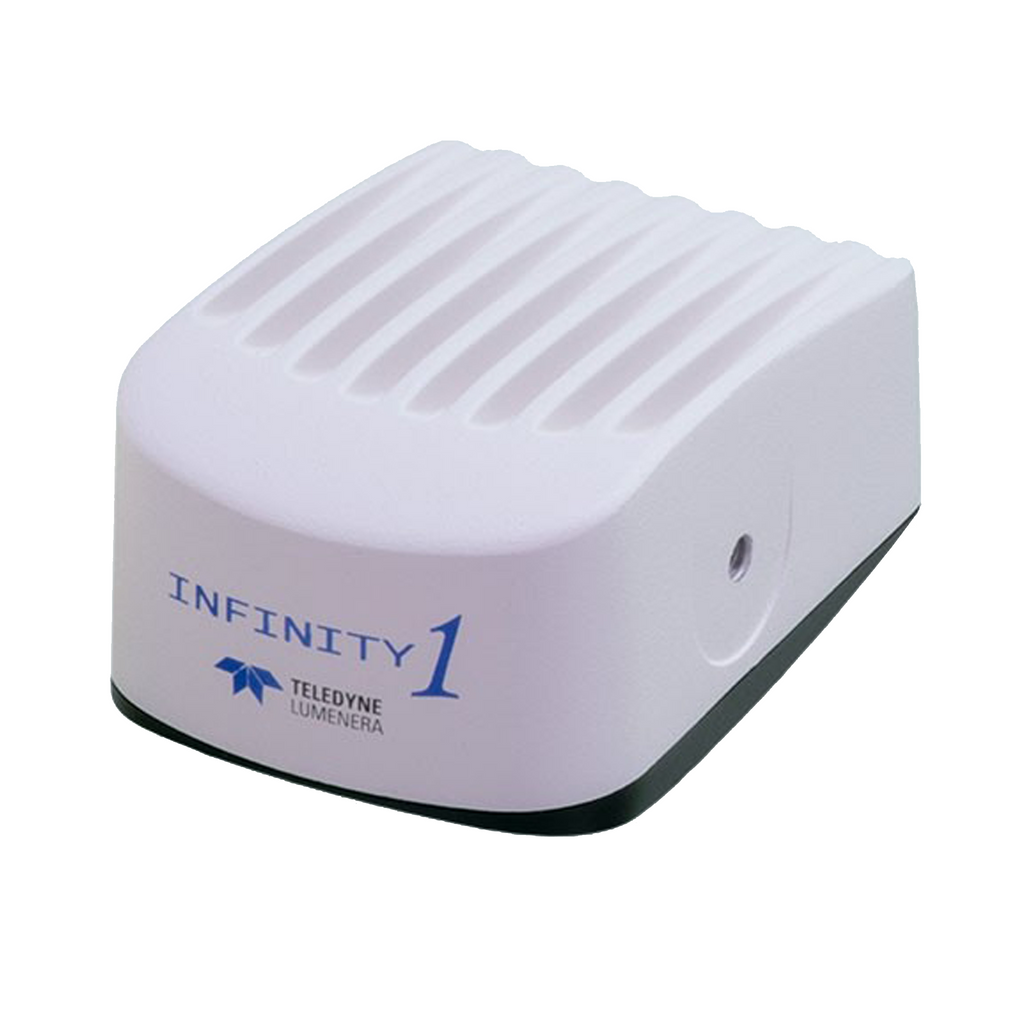

Lumenera 1-3C 3.1 Megapixel CMOS Digital Camera
The INFINITY1-3, a digital camera from Lumenera, is designed to be a cost-effective and versatile solution for documentation in the life science, clinical, and material scientific fields.
Because of its 2048x1536 resolution, the INFINITY1-3 scientific CMOS camera captures exceedingly fine detail that was previously inaccessible to smaller megapixel imaging systems with lower resolutions. Get rapid, smooth previews when manipulating samples, and benefit from up to an 80 frames per second frame rate.
With every INFINITY camera, you'll receive INFINITY ANALYZE software, which allows you to perform advanced camera control functions like image processing, measuring, and annotation. You'll also receive INFINITY CAPTURE, which is an intuitive user interface that includes all of the basic features you'll need to control your INFINITY camera and capture images.
Specifications
- Low noise, progressive scan 1/2" 3.1 megapixel image sensor
- High-speed USB 2.0 for ease of installation on any computers
- Full color sub-windowing allows for rapid focus and scanning of samples: up to 80fps at 640x480
- Crisp color quality for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life science and geology
- Select 8 & 10-bit pixel data modes
| CAMERA SENSOR |
| Image Sensor: |
1/2” format, Micron MT9T001, CMOS, color, progressive scan, 6.5mm x 4.9mm array |
| Effective Pixels: |
2048 x 1536, 3.2µm square pixels |
| Frame Rate: |
12 fps at 2048 x 1536, 80 fps at 640 x 480 |
| Dynamic Range: |
63 dB |
| Digital Output: |
8 and 10-bit uncompressed |
| Read Noise: |
18 e- |
| CAMERA CONTROLS |
| Mass: |
300 g |
| Power Requirement: |
USB bus power (optional 6VDC - 500mA) |
| Power Consumption: |
~2.5 W |
| Operating Temperature: |
0 to +50 °C |
| Operating Humidity: |
5 to 95 %, Non-condensing |
| Integration Time: |
128µs - 500ms (video) 128µs - 4s (snapshot) |
| Shutter: |
Rolling shutter with single frame capture |
| ROI: |
User Selectable |
| Auto Exposure: |
Automatic and Manual |
| White Balance: |
Automatic and Manual |
| Gain: |
1 to 3.88x |
| Interface Connector: |
USB 2.0 high-speed interface |
| Dimensions (L x W x H): |
3.85 x 2.25 x 2.75 inches |
| Lens Mount: |
C-Mount lens adapter |
***Software compatible with Windows 8, 7, 10, XP, Vista, Mac OS X 10.7, 32 and 64-bit operating systems.***
