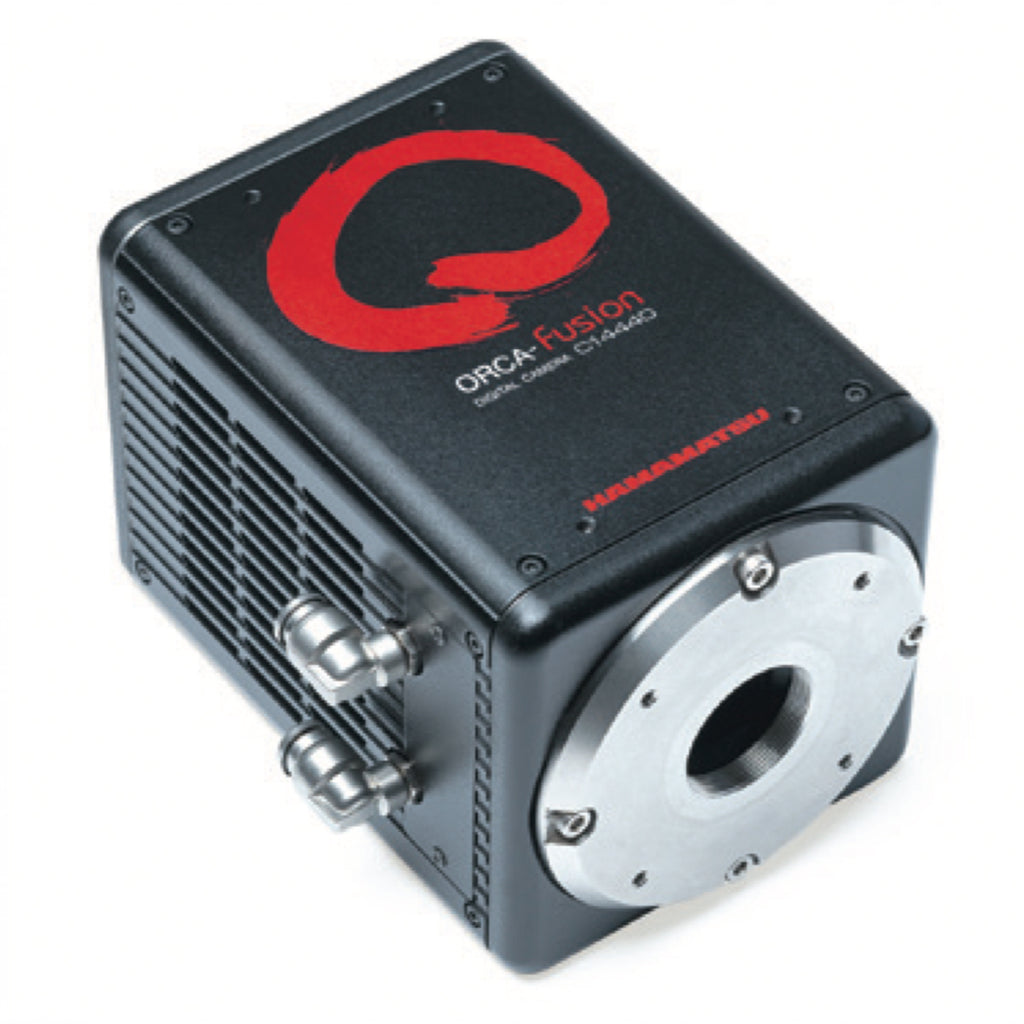

Hamamatsu ORCA-Fusion - Digital sCMOS Camera - C14440-20UP
VISIT VOXYL MICROSCOPES FOR MORE INFORMATION: CLICK HERE
--
The ORCA-Fusion, built from the sensor up, balances the complex nuances of camera features to provide beautiful images and robust data at all lights levels, but especially in tough low-light conditions. The exceptionally low and highly uniform read noise of the ORCA-Fusion means that when the sample emits even just a handful of photons, either by default or by experimental design, they are not lost in the noise, but detected and reliably quantified. After all, when you want to hear a whisper it’s best to be in a quiet place.
| HAMAMATSU ORCA FUSION SPECIFICATIONS |
| TYPE NUMBER: |
C14440-20UP |
| IMAGING DEVICE: |
sCMOS
|
| EFFECTIVE NO. OF PIXELS: |
2304(H)×2304(V) |
| PIXEL SIZE: |
6.5 μm×6.5 μm |
| EFFECTIVE AREA: |
14.976 mm (H)×14.976 mm (V)
|
| FULL WELL CAPACITY: |
15 000 electrons |
| READOUT SPEED: |
• Fast scan: 11.22 ms (89.1 frames/s with CoaXPress or 31.6 frames/s with USB 3.0) (2304 x 2304) *4
• Standard scan: 42.99 ms (23.2 frames/s with CoaXPress or USB 3.0) (2304 x 2304) *4
• Ultra-quiet scan: 184.4 ms (5.4 frames/s with CoaXPress or USB 3.0) (2304 x 2304) *4
|
| READOUT NOISE: |
• Fast scan: 1.4 electrons rms
• Standard scan: 1.0 electrons rms
• Ultra-quiet scan：0.7 electrons rms
|
| COOLING METHOD: |
Peltier cooling |
| COOLING TEMP.: |
• Forced air -5 ˚C (Ambient temperature: +25 ˚C)
• Water -5 ˚C (Water temperature: +25 ˚C)
• Water (Max cooling): Less than -15 ˚C
|
| DARK CURRENT: |
• Cooling temperature(-5 ˚C): 0.5 electrons/pixel/
• Cooling temperature(-15 ˚C): 0.2 electrons/pixel/s
|
| DYNAMIC RANGE: |
21 400 : 1 |
| INTERFACE: |
CoaXPress (Dual CXP-6) and USB 3.0 |
| A/D CONVERTER: |
16 bit / 12 bit / 8 bit |
