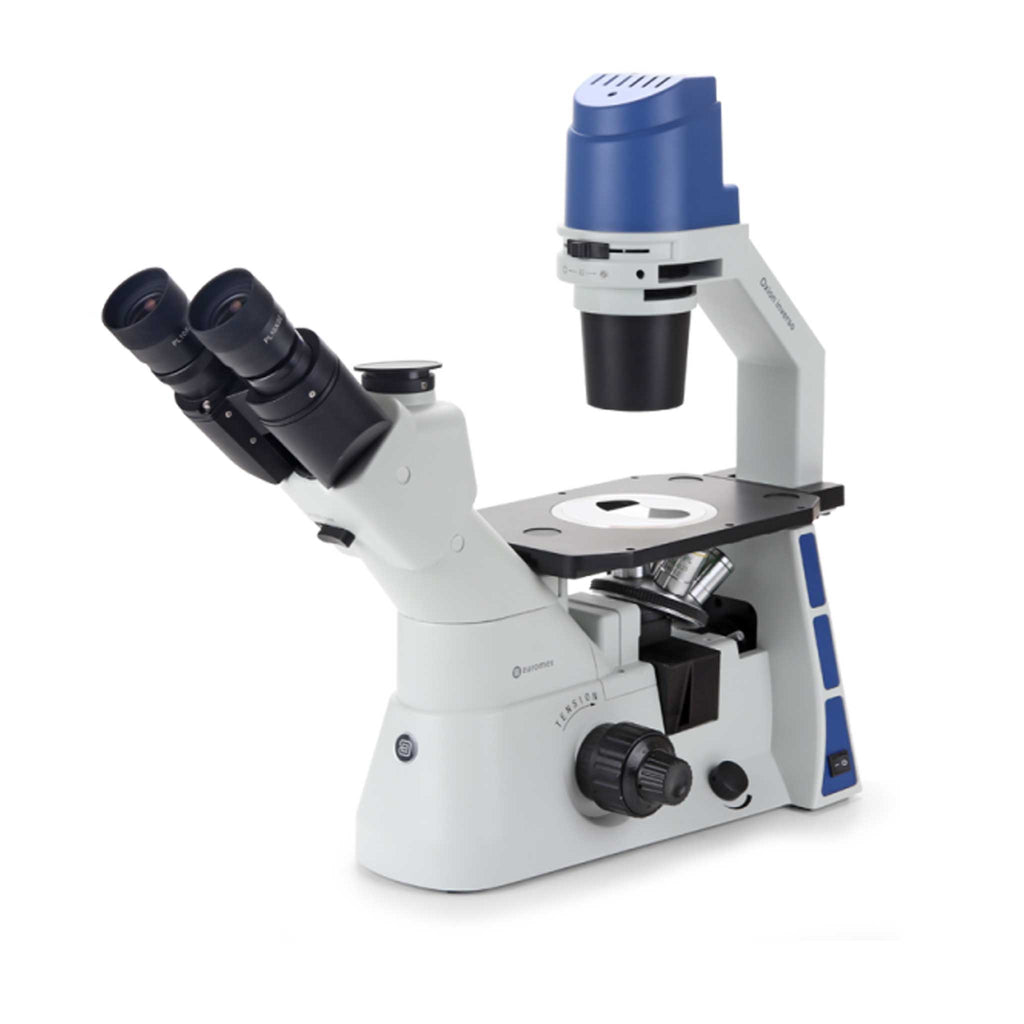

Euromex Oxion Inverso Inverted Phase Contrast Microscope
The Euromex Oxion Inverso Inverted Phase contrast microscope has a lot to offer labs requiring a compact, versatile tissue culture microscope. This configuration includes wide FOV 22mm eyepieces allowing users to image a large portion of their samples. The Infinity Plan Phase 10x, 20x & 40x objectives provide ultra-clear, detailed images for brightfield and phase applications.
An easy-to-use phase contrast slider is located above the ELWD 0.3 N.A. condenser and provides positions for 4x/10x/20x/40x objectives. The standard flat-stage platform allows users to freely move a variety of samples around with ease. An optional mechanical stage is available with a variety of inserts to satisfy any sample.
The Euromex Oxion Inverso is a great addition to any lab looking for a streamlined microscope for tissue culture and other clinical applications.
| EUROMEX OXION INVERSO INVERTED PHASE SPECIFICATIONS |
| Optical System: |
Infinity Corrected Optical Path |
| Head: |
Trinocular 45° inclined tubes with extended low and high positions for eyepieces
|
| Eyepieces: |
WF10x/22mm eyepieces with roll down eyeguards |
| Nosepiece: |
Revolving quintuple nosepiece on ball-bearings |
| Objectives: |
Plan phase PLPH 10x, 20x, S40x IOS infinity corrected objectives |
| Condenser: |
N.A. 0.30 condenser with iris diaphragm. Working distance 72 mm
Supplied with slider with phase contrast annuli and green filter
|
| Stage: |
Fixed plain stage, 250 x 230 mm with metal insert plates - Ø35mm |
| Illumination: |
Transmitted 5 W LED Intensity adjustable |
| Focusing: |
Coaxial 25 mm coarse and fine adjustments, 2 μm precision and with friction adjustment |
| Accessories: |
Supplied with power cord and aluminium transportation box |
| Warranty: |
5 Year Mechanical & Electrical |
