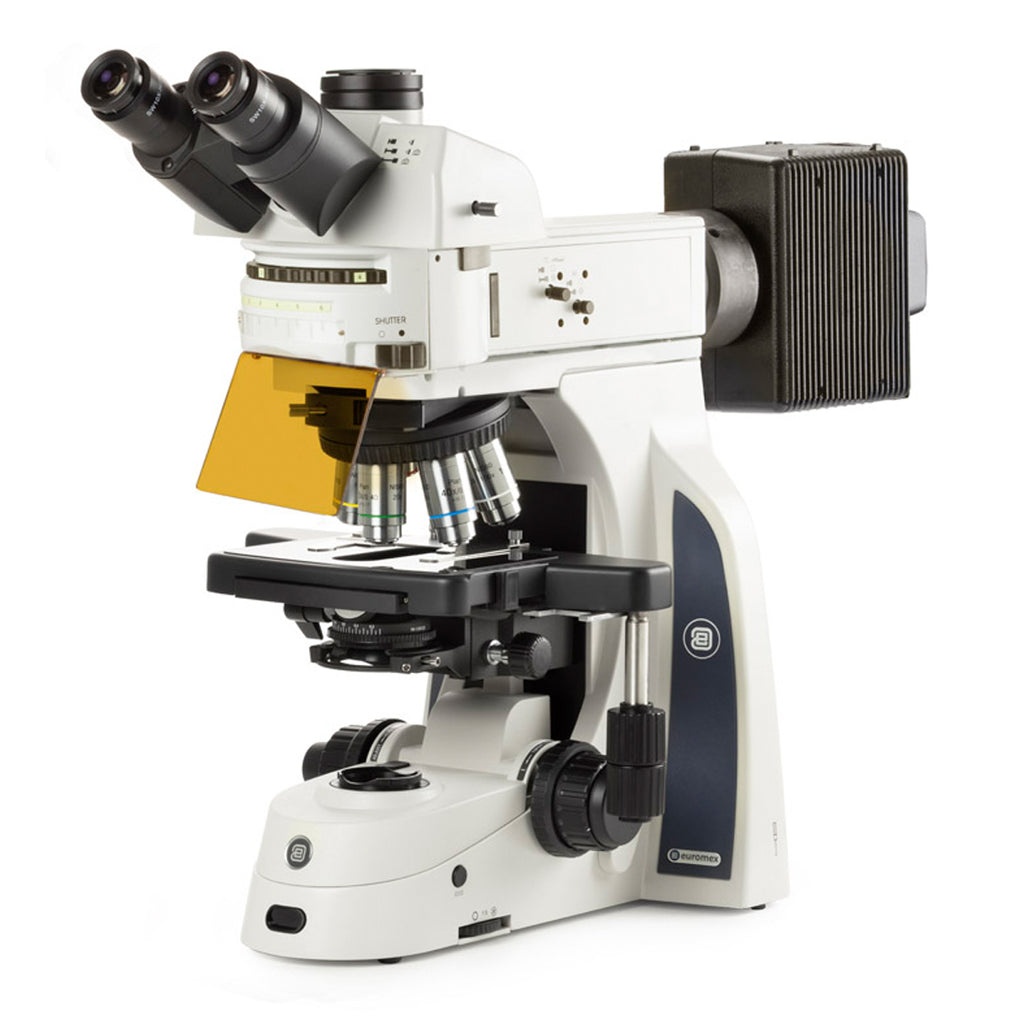

Euromex Delphi-X Observer Fluorescence Microscope - Mercury
Advanced Life Science fluorescence microscopes at the cutting edge of technology. The Delphi-X Observer's outstanding optical performance makes it ideal for Life Science fluorescence applications requiring a high performance optical system. The Super wide field eyepieces' large 25 mm field of view and the high numerical aperture of the Plan Fluarex 60 mm parafocal EIS objectives allow for perfect observations and color rendering at high resolving power.
This Delphi-X Observer fluorescence package includes a 100W HBO mercury vapor lamp. Choose between Plan Achromat or Semi-Plan Apochromatic Fluarex objectives and up to 6 fluorescence filter sets.
Please choose the number of wavelengths needed and a Microscope Supply imaging expert will contact you regarding the specific filter cubes needed. The Delphi-X Observer is modular and can be configured in many ways to fit your individual needs. Please CONTACT US to discuss your application and how the Delphi-X Observer can meet your needs
| EUROMEX DELPHI-X OBSERVER FL SPECIFICATIONS |
| Fluorescence: |
6-position fluorescence illuminator
Includes 100W HBO Mercury vapor lamp
Multiple Filter options available
|
| Head: |
Trinocular (0/100 : 100/0 : 80/20 split), inclined 30°
|
| Eyepieces: |
Super Wide Field 10x/25mm focusable eyepieces with diopter adjustment and eyeguards |
| Nosepiece: |
Reversed sextuple, ball bearing nosepiece with positive click stops to ensure parcentration |
| Objectives: |
Infinity Plan Achromat 4x, 10x, 20x, 40x* and 100x* oil (*spring-loaded)
-OR-
Infinity Plan Semi-Apochromatic 4x, 10x, 20x, 40x* and 100x oil* (*spring-loaded)
|
| Condenser: |
Height adjustable Abbe swing-out N.A. 0.90/ 1.25 condenser with numerical aperture
engravings |
| Stage: |
190 mm x 152 mm stage equipped with integrated 78 x 32 mm mechanical stage and scratchresistant
Gorilla™ glass |
| Illumination: |
3 W NeoLED™ illumination with Internal 100-240 V power supply (CE) |
| Focusing: |
Coaxial coarse and fine adjustments with 100 graduations. Precision 1 μm, 0.1 mm per
rotation. Total travel approximately 35 mm |
| Accessories: |
Carrying grip at the back of the microscope for safe transportation and Allen screwdriver in integrated holder. Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil, dust cover and user manual, all packed in carton shipment box |
| Warranty: |
10 Year Mechanical, 2 Year Electrical |
| FLUORESCENCE FILTER OPTIONS |
| DAPI (365nm) : |
EX: 350/50x, BS: 400DC, EM: 460/50m
|
| DAPI (390nm) : |
EX: 390/40x, BS: 415DC, EM: 460/50m
|
| FITC / GFP: |
EX: 470/40x, BS: 505DC, EM: 535/50m |
| TRITC, Cy3, mOrange, Alexa 532 : |
EX: 525/40x, BS: 560DC, EM: 605/55m |
| tDtomato, DsRed, Alexa568 : |
EX: 560/40x, BS: 600DC, EM: 630/60m
|
| Texas Red, mCherry, Alexa 594 : |
EX: 580/40x, BS: 600DC, EM: 650/75/M |
| GFP/FITC Longpass : |
EX: AT480/30x, BS: AT505DC, EM: AT515LP |
| Additional Filters: |
Please CONTACT US for additional filter options |
