Euromex bScope E-Plan Infinity IOS Microscope

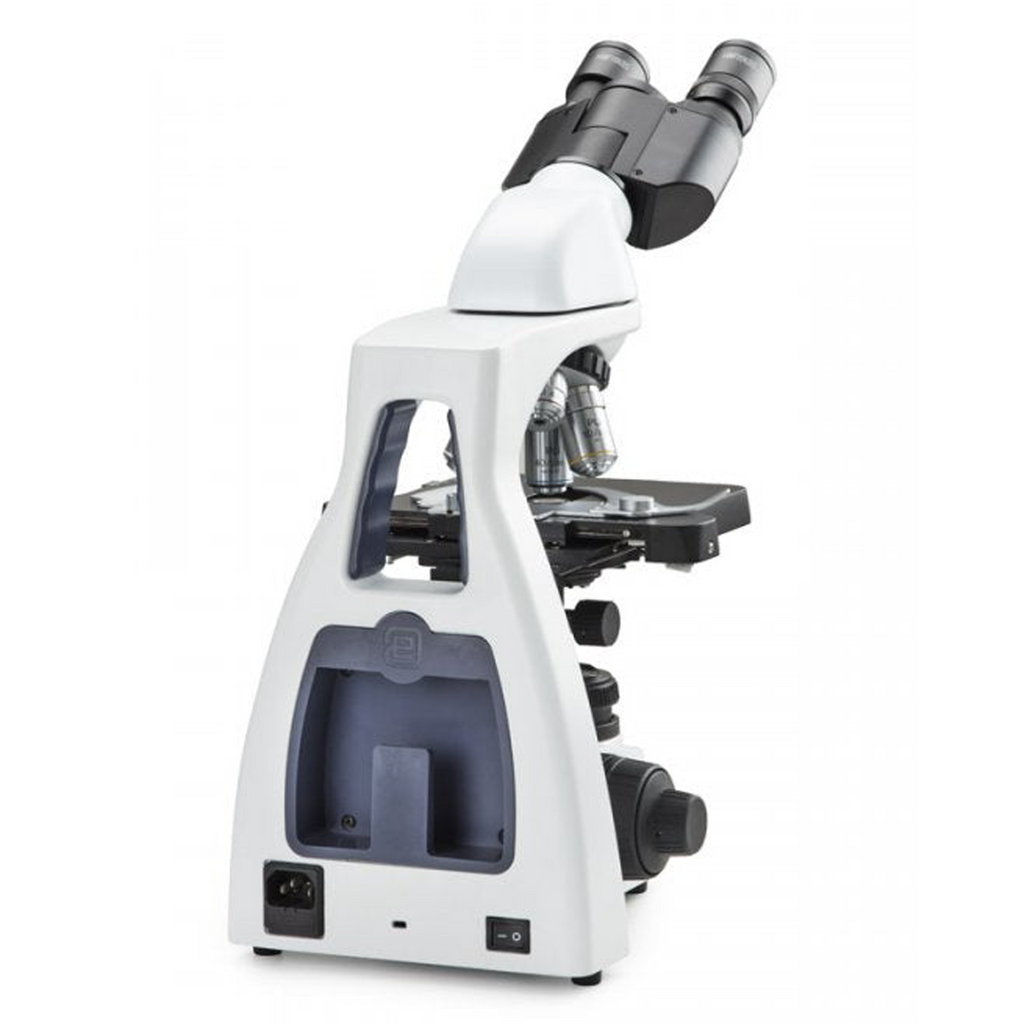

The Euromex bScope upright microscope series includes features often seen in more expensive microscope models. The bScope takes care of messy storage with it's built-in cord wrap, molded into the back of it's frame. Integrated carry handles make picking up and moving the bScope safe and easy! Wide FOV 20mm eyepieces come standard on all bScope models. The 3 Watt LED provides plenty of even illumination throughout the objective range. Rechargeable AA batteries can be added for cordless operation.
This Euromex bScope configuration includes your choice between a binocular or trinocular viewing head and Infinity corrected E-Plan 4x, 10x, 20x, 40x or 4x, 10x, 40x and 100x Oil objectives
EUROMEX BSCOPE INFINITY E-PLAN SPECIFICATIONS |
Optical System: |
Infinity corrected IOS |
Head: |

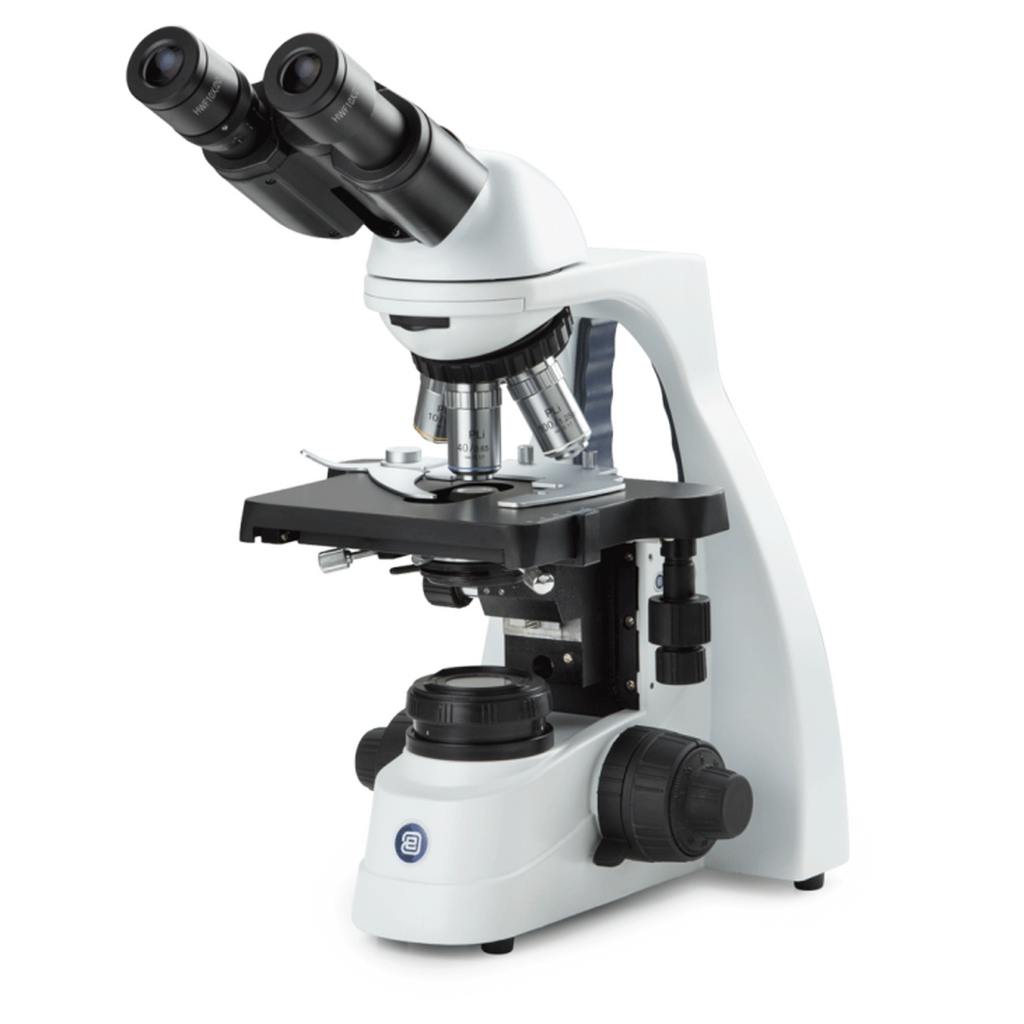

Binocular, 360° rotatable with 30° incline
-OR-

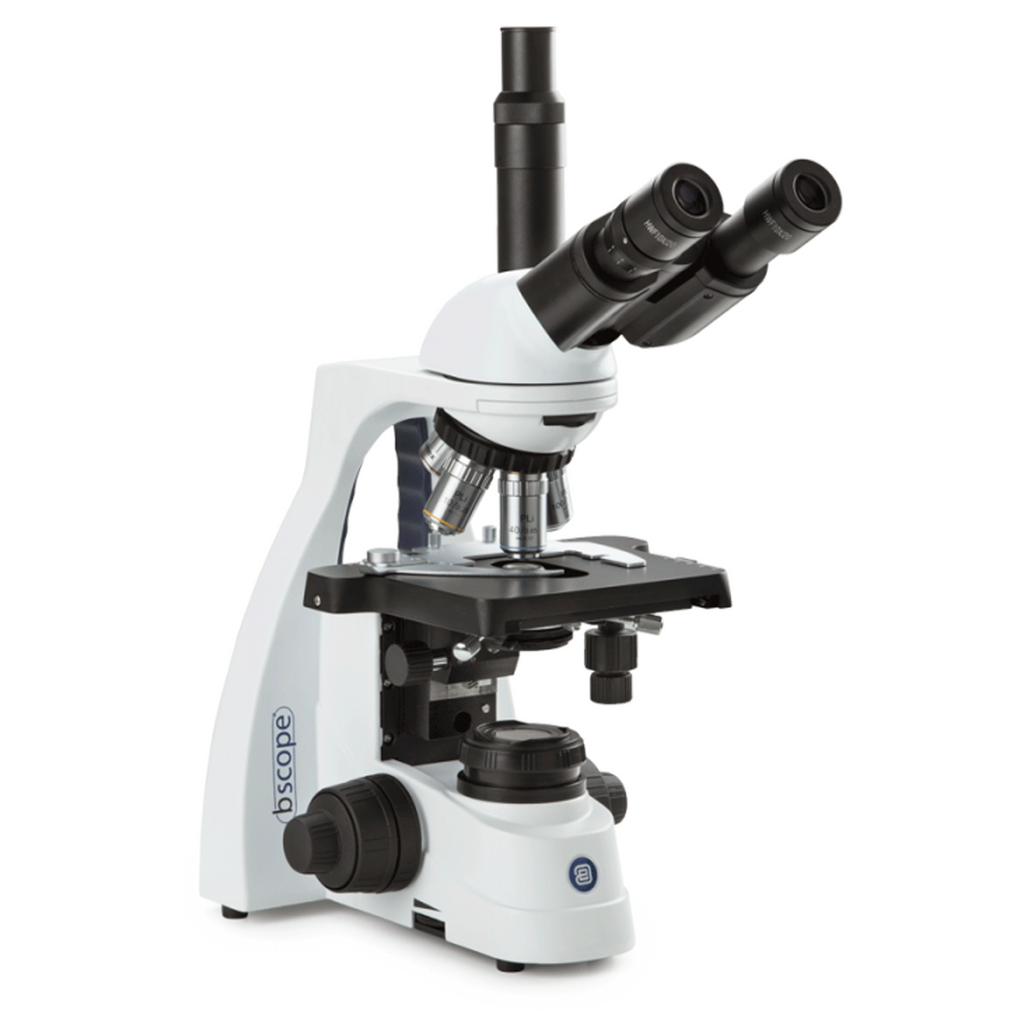

Trinocular, 360° rotatable with 30° incline
|
Eyepieces: |
HWF 10x/20 mm secured eyepiece(s) |
Nosepiece: |
Revolving and reversed ball-bearing quadruple |
Objectives: |
Infinity IOS E-Plan EPLi 4x, 10x, 20x, S40x
-OR-
Infinity IOS E-Plan EPLi 4x, 10x, S40x, S100x oil
|
Condenser: |
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder |
Stage: |
Mechanical rackless stage |
Illumination: |
3 W NeoLED™ illumination. Internal power supply 100-240 V |
Focusing: |
Coaxial coarse and fine adjustments |
Accessories: |
Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and without rechargeable AA-type batteries |
Warranty: |
5 Year Mechanical & Electrical |
