Description

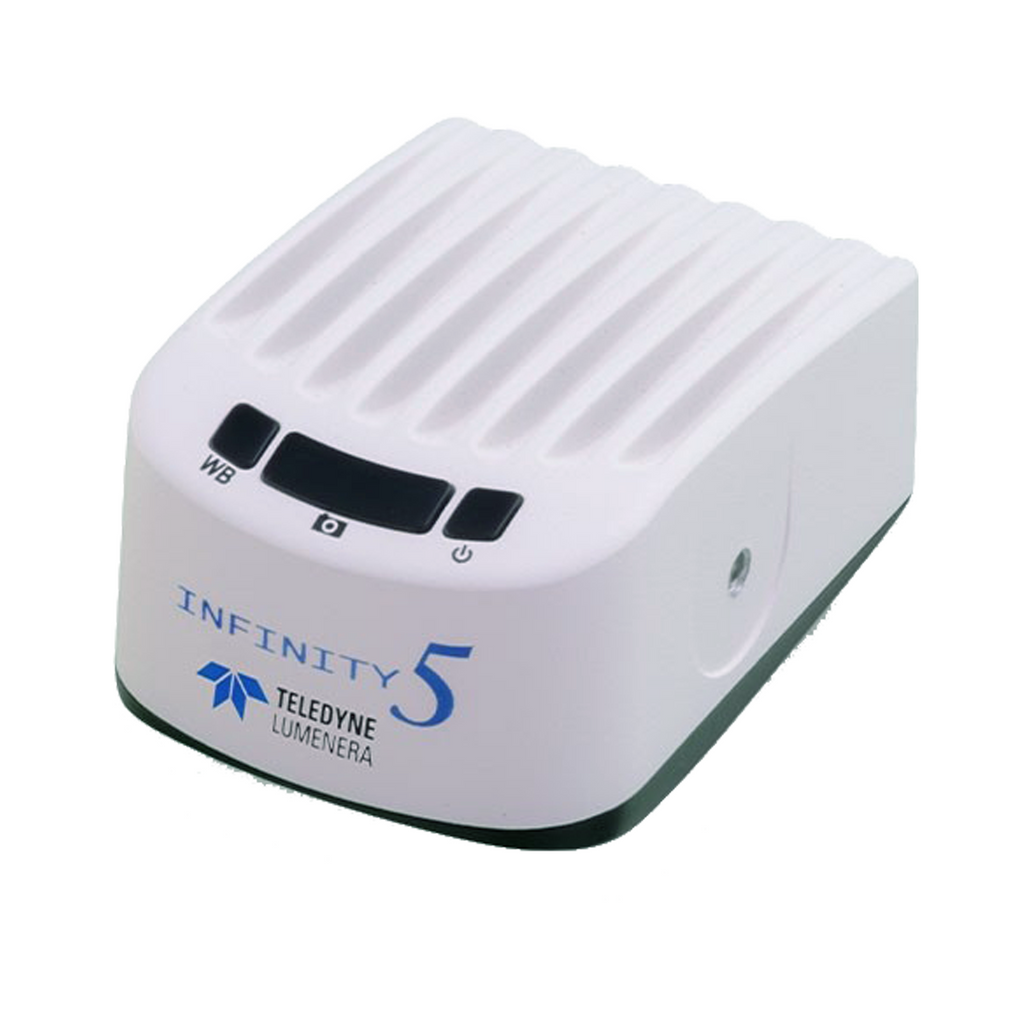

The INFINITY5-3 by Lumenera is a high-quality 3.2 megapixel microscope camera that operates at rapid speeds while maintaining high resolution. It is built around the Sony® Pregius global shutter CMOS sensor, which competes with sCMOS technology in terms of performance. The INFINITY5-3 operates well in a wide range of applications thanks to its rapid focusing and high frame rates of up to 120 frames per second.
The INFINITY5-'3s 1/1.8 inch sensor format enables a resolution of 2064 x 1544 pixels with 3.45 micron pixels in a 1/1.8 inch sensor format. The INFINITY5-3's HDMI output allows it to be connected to both a computer and an HDMI TV or monitor, which is useful in scenarios where information sharing is vital.
Live viewing on a computer and an HDMI monitor at the same time
You may operate the camera by attaching it directly to an HDMI monitor, or you can link it to a PC or a Mac by USB 3 for image preview and recording. Control the camera with the soft-touch response buttons, whether or not the camera is connected to a computer via USB cable.
Set to Perform
When you purchase the INFINITY5-3, you will receive cables (USB and HDMI), a power supply, and the INFINITY CAPTURE software, which will allow you to complete your everyday imaging tasks such as camera setting modifications, live preview, image capture, and video capture. INFINITY5-3 also offers third-party connectivity with MetaMorph and Micro-Manager microscope software, MatLab systems engineering software, LabView analysis software, as well as TWAIN and DirectShow interfaces.
Color that's Accurate
Lumenera's unique algorithms enable perfect color reproduction, resulting in a sample preview on a computer monitor that is identical to the image via the microscope's optical system.
Quality that's Guaranteed
Lumenera offers an industry-leading four-year guarantee on all of its microscope cameras, which is the best in the industry.
Specifications
- Sony Pregius global shutter sensor technology
- Color or monochrome IMX252 Global Shutter CMOS sensor with 1/1.8” optical format providing a resolution of 2064 x 1544 using 3.45 x 3.45μm pixels
- Fast frame rates at ~120 fps at full resolution in 8-bit
- Dual output to USB 3 and HDMI compatible monitor
- Intuitive on-camera buttons for power, white balance and image capture
- Selectable 8 or 12-bit pixel data
- High-speed USB 3.1 Gen 1 interface for fastest image delivery and simplified connectivity. USB 2.0 supported.
- Software compatible with Windows 10, Windows 8.1, Windows 7, MAC OS X 10.13, 32 and 64-bit operating systems
- Support for third-party capture and analysis applications: MetaMorph and Micro-Manager
- Recommended coupler: 0.5x or 0.63x
| CAMERA SENSOR | |
|---|---|
| Image Sensor: | SONY IMX252 CMOS color or monochrome |
| Optical Format: | 1 / 1.8” |
| Frame Rate: | in 8-bit: 1080P60, ~120 |
| Full Well Capacity: | ~10,775 e- |
| Dark Current: | 1.0 e-/s (at 22 ºC ambient, 35 ºC internal camera) |
| Frame Rate: | Pixel Size |
| Dynamic Range: | ~73 dB |
| Bit Depth: | 8 or 12-bit |
| Read Noise: | ~2.35 e- |
| CAMERA CONTROLS | |
| Mass: | 330 g |
| Power Requirement: | External 5 V DC, 1.2 A, power supply (included) |
| Power Consumption: | ~4W |
| Operating Temperature: | 0 to 50 ° C |
| Operating Humidity: | 5 - 95 %, Non-condensing |
| Exposure Range: | 38μs to 59.5m (snapshot); 14μs to 11.9s (video) |
| Shutter: | Global |
| Exposure Control: | Manual and automatic control |
| White Balance: | Manual and automatic control |
| Gain Range: | ~1 to 16 x, manual and automatic control |
| Interface Connector: | USB 3 connector, HDMI output |
| Sensitivity: | 8-bit: Mono: 4.8 DN/(nJ/cm2), Color: 4.4 DN/(nJ/cm2) (Global and channel gains at unity) |
| Lens Mount: | Adjustable C-Mount standard |
