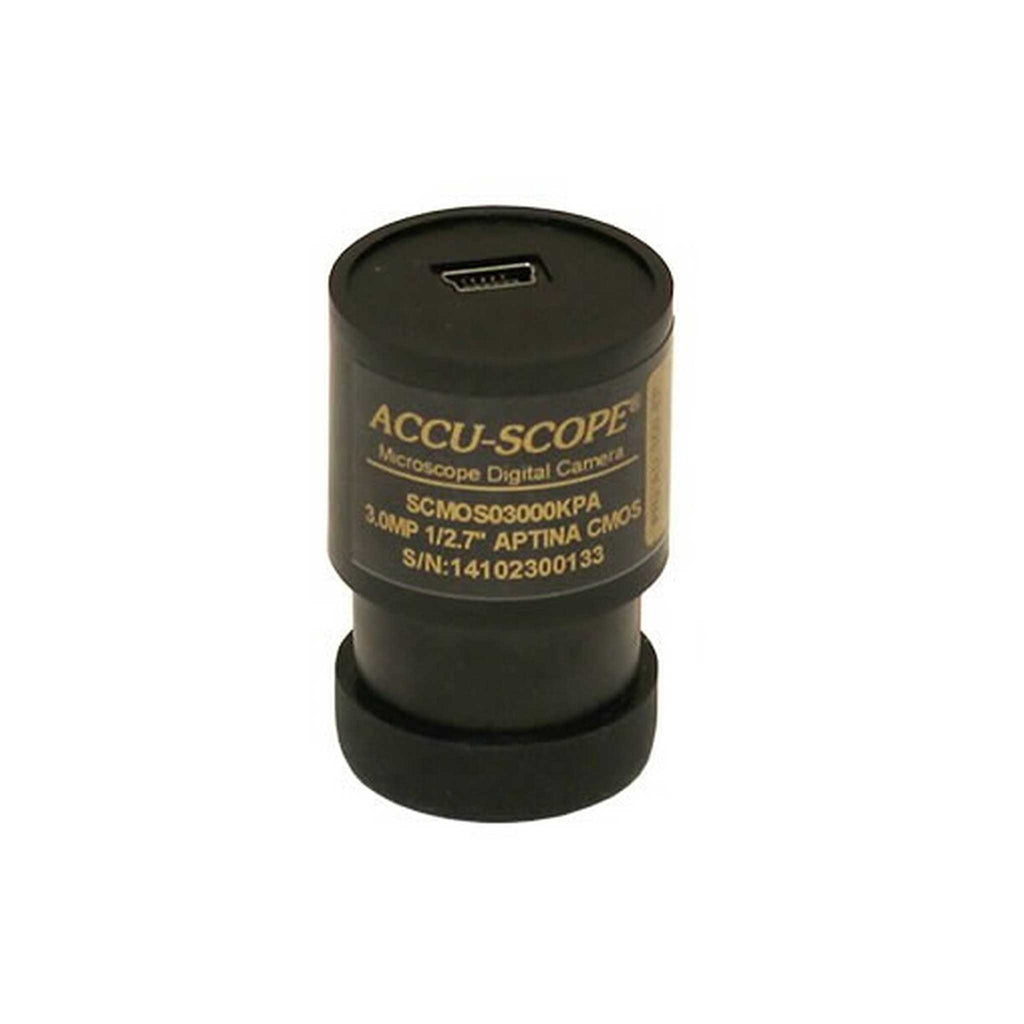

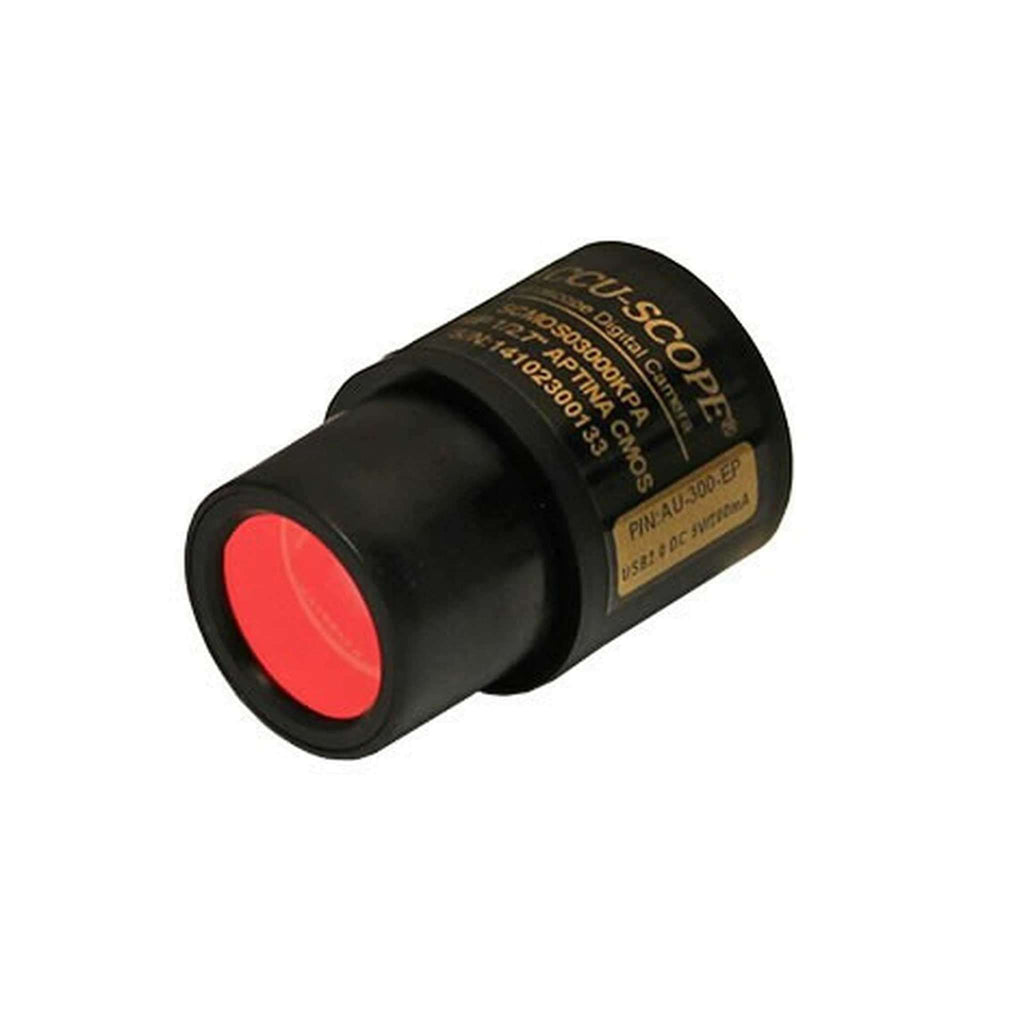

Accu-Cam 300 - 3.0 Megapixel Color Eyepiece Camera
The Accu-Cam 300 is the perfect camera choice for hobbyists and microscope users on a budget. But don't let the price fool you, the Accu-Cam 300 is bursting at the seams with features!
The included Accu-View software allows you to view and capture images / videos, perform measurements / annotations with full control over camera settings, white balance, etc.
The Accu-Cam 300 eyepiece camera fits in a 23.2mm eyepiece tube or photo tube. For microscopes with 30mm eyepiece tubes, add the 30mm I.D. adapter!
Accu-Cam 300 Characteristics:
- Perfect solution for those on a tight budget who need to capture images and video!
- 1/2.7″ 3.0 MP CMOS eyepiece camera
- USB 2.0 direct connect to your PC
- Includes our feature-rich ACCU-View software for image analysis, anotation, measurement, white balance & more!
- Captures digital still and video
- Fits into a 23.2mm I.D. eye tube or photo tube. Optional adapter (CAT #5036) available for 30mm I.D. eyepieces
- In the box: ACCU-CAM 300 eyepiece camera, USB 2.0 mini cable, ACCU-View software CD
| ACCU-CAM 300 SPECIFICATIONS |
| DYNAMIC/STATIC RESOLUTION: |
2048 x 1536 |
| SENSOR: |
1/2.7" Aptina color CMOS, 2.2µm pixels
|
| FRAME RATE: |
3fps @ 2048x1536, 5fps @ 1600x1200, 7.5fps @ 1280x1024 |
| IMAGE CAPTURE: |
3MP |
| SHUTTER: |
Rolling
|
| EXPOSURE: |
Automatic and Manual |
| WHITE BALANCE: |
Automatic or Manual |
| OTHER SETTINGS: |
Gain, Gamma, Color Adjustment, Histogram |
| PC IMAGING SOFTWARE: |
ACCU-View (PC, Mac and Linux)
Image Types: JPEG, BMP, TIF, PNG, GIF, PCX, TGA, TFT (proprietary format for ACCU-View)
|
| OUTPUT MODE: |
USB 2.0 |
| SYSTEM REQUIREMENTS: |
Windows 7 and up (32 and 64-bit); Mac OS 10.6 and up; Linux 2.6 and up |
| LENS MOUNT: |
Eyepiece adapter (camera fits 23.2mm I.D. eye tube or photo tube. Optional adapter (CAT #5036) available for 30mm I.D. eyepieces |
| POWER SUPPLY: |
via USB 2.0 |
| WARRANTY: |
1-Year |
